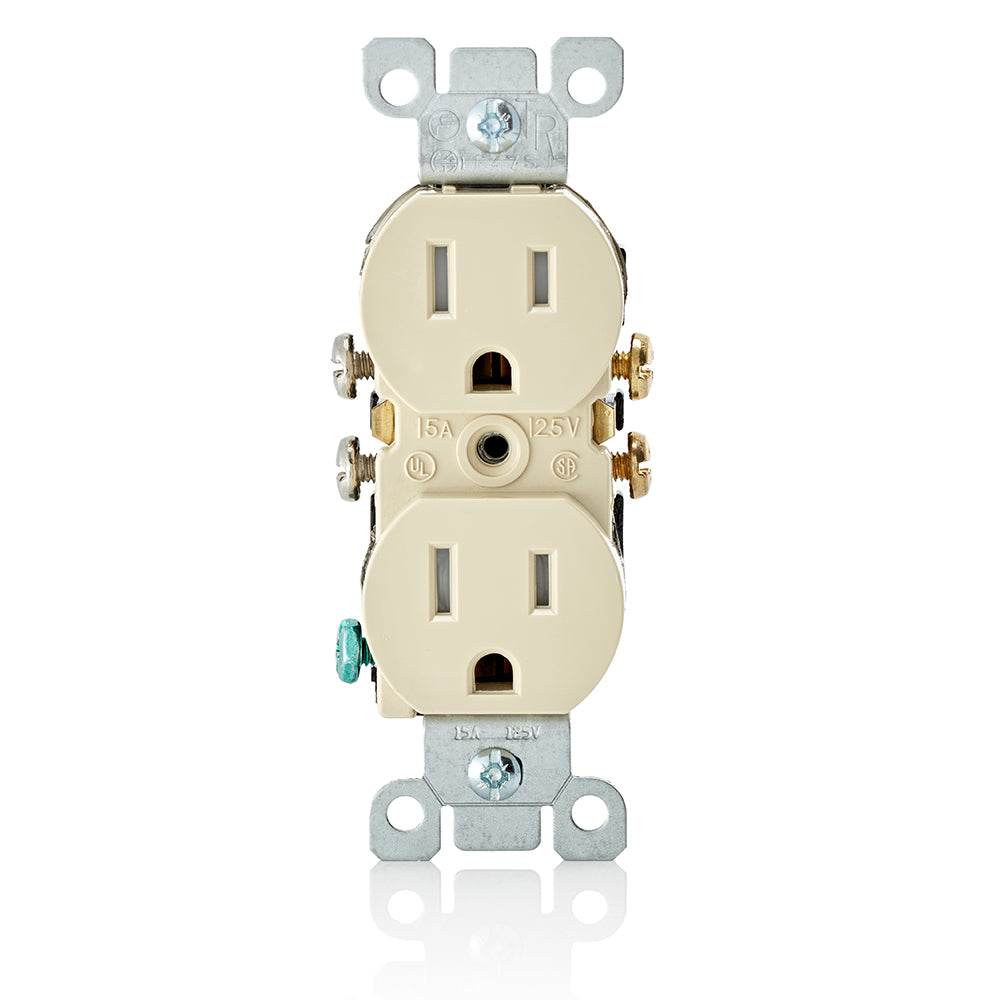

Leviton T5320-I 15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle/Outlet, Straight
Leviton

Leviton T5320-I 15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle/Outlet, Straight

LevitonModel / SKU: T5320-I · UPC 07847738191
Tamper-Resistant Receptacles
$1.66
$1.66 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

Ivory - 15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle/Outlet, Straight Blade, Grounding, Quickwire Push-In & Side, Standards and Certifications: UL/CSA, Warranty: 2 Year Limited, NEC compliant

Part Number T5320-I
UPC 07847738191
Nema 5-15R
Amperage 15 A
Blade Type Straight Blade
Color Ivory
Device Type Duplex Receptacle Outlet
Feature Tamper-Resistant
Grounding Grounding
NEMA 5-15R
Pole 2
Terminal Accom. Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
Termination Quickwire Push-In & Side
Torque Range 14 – 18 in.-lbs
Voltage 125 VAC
Warranty 2-Year Limited
Wire 3
CSA C22.2 No. 42 File 152105; Class 6233-01
NOM NOM Certified
UL 498 File E13399
