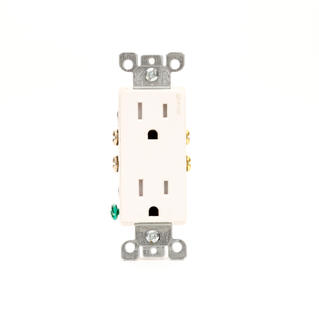

Home › Leviton T5325-W 15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Tamper-Resistant, Decora, Duplex Receptacle/Outlet
Leviton T5325-W 15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Tamper-Resistant, Decora, Duplex Receptacle/Outlet
Model / SKU: T5325-W · UPC 07847738162$3.30
$3.30 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
White - 15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Tamper-Resistant, Decora, Duplex Receptacle/Outlet, Straight Blade, Grounding, Quickwire Push-In & Side, Standards and Certifications: UL/CSA, Warranty: 2 Year Limited, NEC compliant
| Part Number | T5325-W |
| UPC | 07847738162 |
| Nema | 5-15R |
| Amperage | 15 A |
| Blade Type | Straight Blade |
| Color | White |
| Company/brand | Decora |
| Feature | Tamper-Resistant |
| Grounding | Grounding |
| NEMA | 5-15R |
| Pole | 2 |
| Terminal Accom. | Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only |
| Termination | Quickwire Push-In & Side |
| Torque Range | 14 – 18 in.-lbs |
| Type | Duplex Receptacle |
| Voltage | 125 VAC |
| Warranty | 2-Year Limited |
| Wire | 3 |
| CSA C22.2 No. 42 | File 152105; Class 6233-01 |
| NOM | NOM Certified |
15a-receptacle-instruction-sheet.pdf
- Certifications & Listings: UL Listed, CSA
| Brand | Leviton |
| SKU | T5325-W |
| UPC | 07847738162 |
| Type | Tamper-Resistant Receptacles |
| Title | Default Title |
