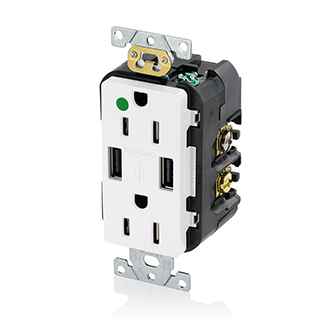

Leviton T5632-HGW 15 A 125 VAC Type A/A Duplex Receptacle White
Model / SKU: T5632-HGW · UPC 07847768547$43.56
$43.56 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ Easy returns
| Part Number | T5632-HGW |
| UPC | 07847768547 |
| Nema | 5-15R |
| At Rated Voltage | 1/2 HP |
| Amperage | 15 A |
| Dielectric Voltage | Withstands 2000V per CSA |
| Grounding | Self-Grounding |
| Pole | 2 |
| Temperature Rise | Max 30C after 100 cycles OL |
| Voltage | 125 VAC |
| Wire | 3 |
| Flammability | Rated V-0 per UL 94 |
| Operating Temperature | -10°C to 40°C |
| Body Material | PBT Thermoplastic polyester resin |
| Face Material | PBT |
| Ground Clips | Brass |
| Grounding Screw | Steel |
| Line Contacts | Brass |
| Strap Material | Steel |
| Terminal Clamp | Brass |
Q-873A%20Hospital%20Grade%20USB%20Receptacles.pdf
Straight%20Blade%20Receptacle%20Catalog%20Q-1101H.pdf
| Brand | Leviton |
| SKU | T5632-HGW |
| UPC | 07847768547 |
| Type | USB Receptacles |
