Home โบ Leviton T5633-2W 15 A 125 VAC USB Receptacle White

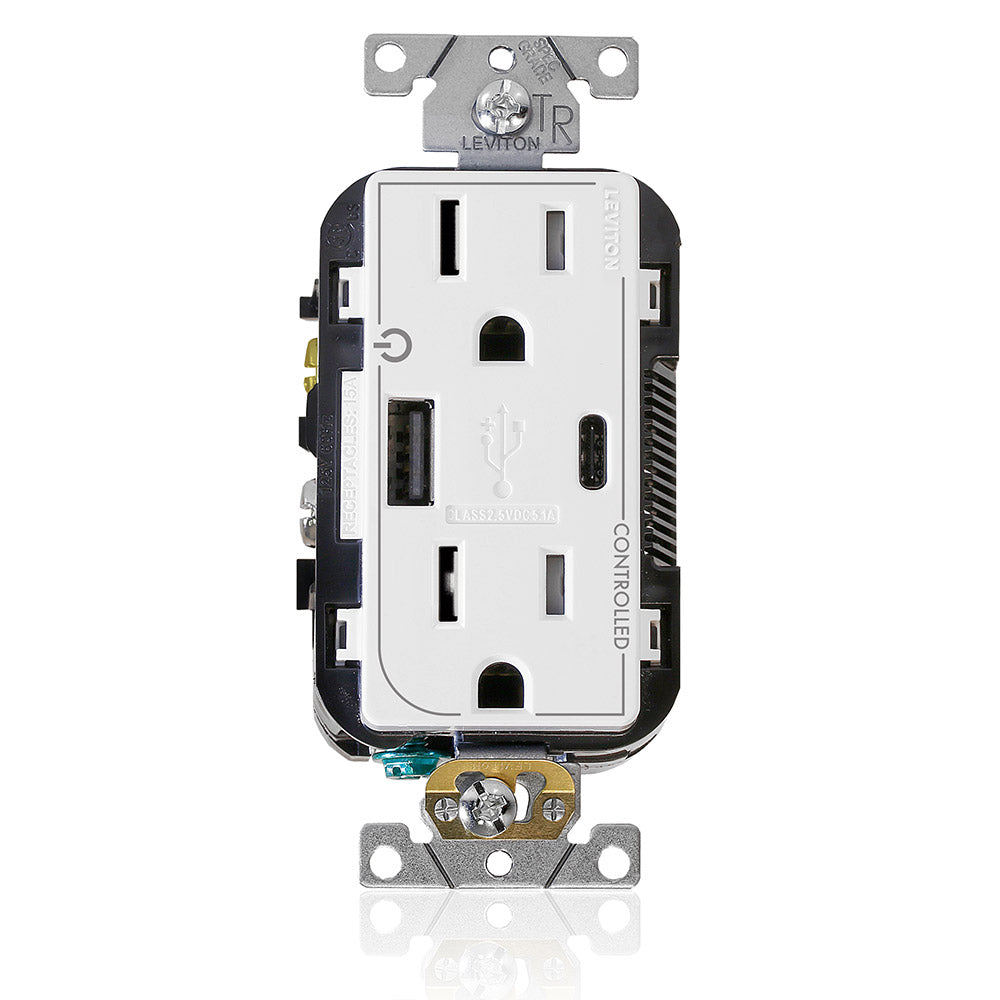

Leviton T5633-2W 15 A 125 VAC USB Receptacle White
Model / SKU: T5633-2W ยท UPC 07847732972$56.67
$56.67 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- ๐ Free shipping on orders $999+
- โฉ 30-day returns (see policy)
| Part Number | T5633-2W |
| UPC | 07847732972 |
| Nema | 5-15R |
| Amperage | 15 A |
| Grounding | Self Grounding |
| Pole | 2.0 |
| Voltage | 125 VAC |
| Wire | 3.0 |
| Operating Temperature | -10C to 40C |
| Horsepower Rating | 1/2 HP |
| Strap Material | Galvanized Steel |
| Product ID | Stamped on Strap |
| Screw Terminal Torque | 14-18 in-lb |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination | Back & Side Wire |
| Brand | Decora |
| Color | White |
| Device Type | Duplex Receptacle Outlet |
| Feature | Marked Controlled,USB |
| Grade | Commercial Specification Grade |
Leviton%20T5633%20T5833%20Instruction%20Sheet%20EnFrSp.pdf
| Brand | Leviton |
| SKU | T5633-2W |
| UPC | 07847732972 |
| Type | USB Receptacles |
| Title | Default Title |
Free ground shipping on orders over $999. Orders ship direct from the manufacturer or distributor warehouse, typically within 2โ5 business days, then 2โ7 business days in transit. Contiguous U.S. only. Freight orders are quoted before you are charged. See our shipping policy and 30-day return policy.
