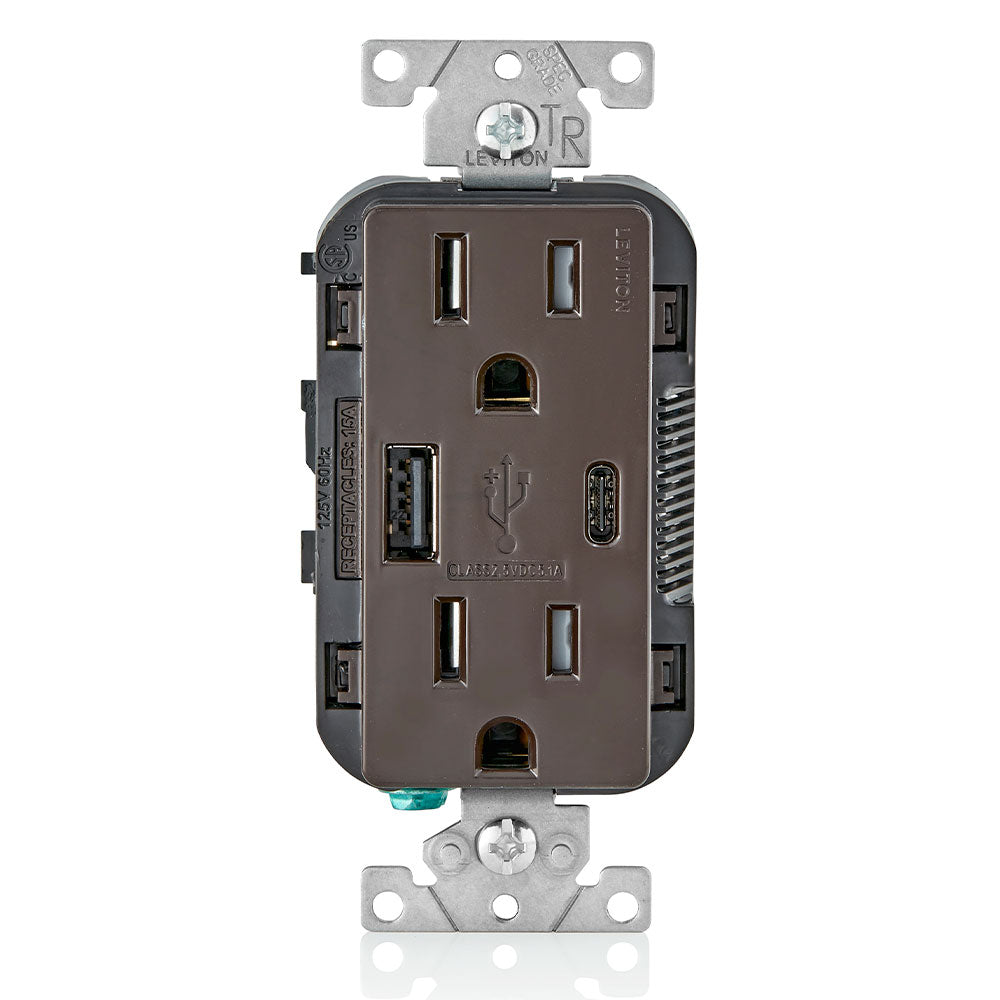

Leviton T5633-B Combination Duplex Receptacle/Outlet and USB Charger. 15 Amp, 125 Volt, Decora Tamper Resistant
Model / SKU: T5633-B · UPC 07847784136$30.52
$30.52 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ Easy returns
Brown - Combination Duplex Receptacle/Outlet and USB Charger. 15 Amp, 125 Volt, Decora Tamper Resistant Receptacle/Outlet, NEMA 5-15R. 5.1 Amps, 5VDC, 2.0 Type A and Type-C USB Chargers. Grounding, Side Wired & Back Wired
| Part Number | T5633-B |
| UPC | 07847784136 |
| Nema | 5-15R |
| Amperage | 15 A |
| Body Material | Thermoplastic |
| Color | Brown |
| Cover Material | Thermoplastic |
| Grounding | Grounding |
| Horsepower Rating | 15A-1/2 HP |
| Strap Material | Steel |
| Flammability | Rated V-0 per UL 94 |
| Operating Temperature | -10°C to 40°C |
| Product ID | Stamped on Strap |
| Terminal Accom. | 14-12 AWG |
| Terminal ID | Brass-Hot Black-Hot White-Neutral Green-Gnd |
| Torque Range | 14 – 18 in.-lbs |
| Grade | Commercial Specification Grade |
| Listed | cCSAus |
| NOM | 057 |
| Termination | Back & Side |
Leviton%20T5633%20T5833%20One%20Side%20Instruction%20Sheet%20EnFrSp.pdf
Leviton%20T5633%20T5833%20Opposite%20Sides%20Instruction%20Sheet%20EnFrSp.pdf
| Brand | Leviton |
| SKU | T5633-B |
| UPC | 07847784136 |
| Type | USB Receptacles |
| Title | Default Title |
