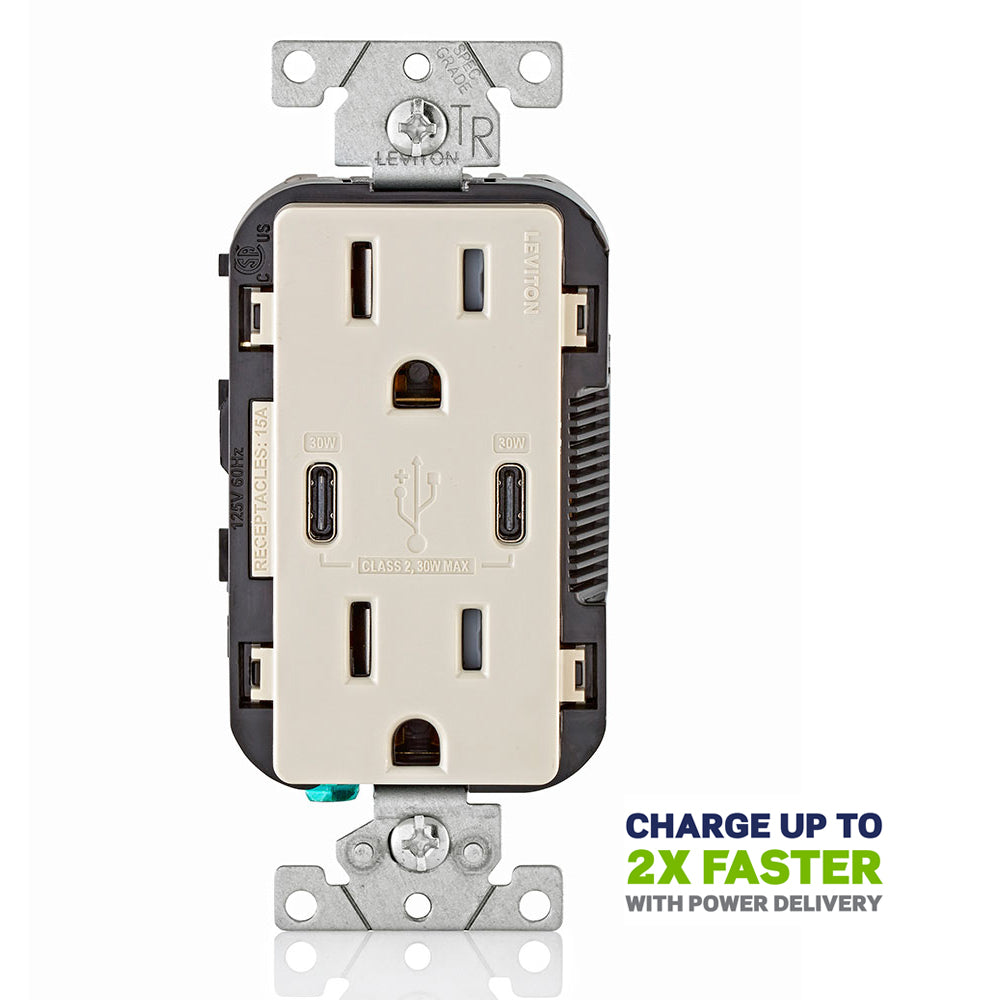

Leviton T5635-G 15 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-15R, 30W (6 Amps), Dual Type-C/C Power
Leviton

Leviton T5635-G 15 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-15R, 30W (6 Amps), Dual Type-C/C Power

LevitonModel / SKU: T5635-G · UPC 07847797924
USB Receptacles
$37.47
$37.47 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

Gray - 15 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-15R, 30W (6 Amps), Dual Type-C/C Power Delivery USB Chargers, Grounding, Side Wired & Back Wired

Part Number T5635-G
UPC 07847797924
Nema 5-15R
Amperage 15 A
Body Material Thermoplastic
Color Gray
Cover Material Thermoplastic
Grounding Grounding
Horsepower Rating 15A-1/2 HP
Ratings 15A-125V
Strap Material Steel
Voltage 125 VAC
Flammability Rated V-0 per UL 94
Operating Temperature -10°C to 40°C
Product ID Stamped on Strap
Terminal Accom. 14-12 AWG
Terminal ID Brass-Hot Black-Hot White-Neutral Green-Gnd
Termination Back & Side
Torque Range 14 – 18 in.-lbs
Grade Residential/Commercial Specification Grade
