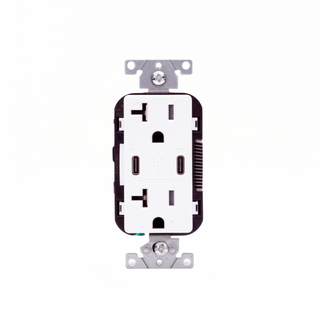

Home › Leviton T5835-W 20 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-20R, 30W (6 Amps), Dual Type-C/C Power
Leviton T5835-W 20 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-20R, 30W (6 Amps), Dual Type-C/C Power
Model / SKU: T5835-W · UPC 07847797939$40.83
$40.83 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
White - 20 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-20R, 30W (6 Amps), Dual Type-C/C Power Delivery USB Chargers, Grounding, Side Wired & Back Wired
| Part Number | T5835-W |
| UPC | 07847797939 |
| Nema | 5-20R |
| Amperage | 20 A |
| Body Material | Thermoplastic |
| Color | White |
| Cover Material | Thermoplastic |
| Grounding | Grounding |
| Horsepower Rating | 20A-1/2 HP |
| Ratings | 20A-125V |
| Strap Material | Steel |
| Voltage | 125 VAC |
| Flammability | Rated V-0 per UL 94 |
| Operating Temperature | -10°C to 40°C |
| Product ID | Stamped on Strap |
| Terminal Accom. | 14-12 AWG |
| Terminal ID | Brass-Hot Black-Hot White-Neutral Green-Gnd |
| Termination | Back & Side |
| Torque Range | 14 – 18 in.-lbs |
| Grade | Residential/Commercial Specification Grade |
Leviton%20T5635%20T5835%20Instruction%20Sheet%20EnFrSp.pdf
Leviton%20T5635-T5835%20Dimensional%20Drawing.pdf
| Brand | Leviton |
| SKU | T5835-W |
| UPC | 07847797939 |
| Type | USB Receptacles |
| Title | Default Title |
