Home › Leviton TBR15-W 15 A 125 VAC Tamper-Resistant Receptacle White

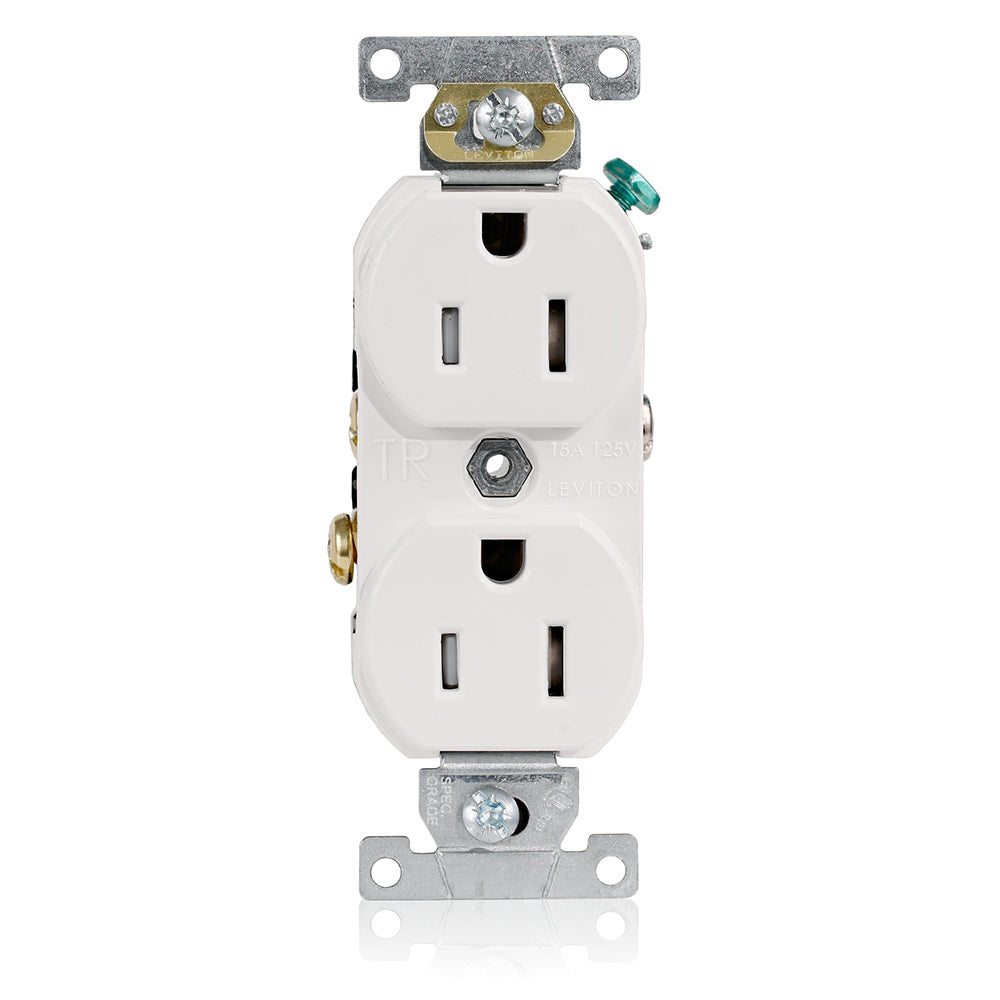

Leviton TBR15-W 15 A 125 VAC Tamper-Resistant Receptacle White
Model / SKU: TBR15-W · UPC 07847738178$11.11
$11.11 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
| Part Number | TBR15-W |
| UPC | 07847738178 |
| Nema | 5-15R |
| RoHS Compliant | Yes |
| Amperage | 15 A |
| Current Limiting | Full Rated Current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Self-Grounding |
| Pole | 2 |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Operating Temperature | -40°C to 60°C |
| Body Material | Thermoplastic |
| Color | White |
| Face Material | Thermoplastic |
| Ground Clips | Brass |
| Grounding Screw | Plated Steel |
| Line Contacts | Brass .031 Thick |
| Strap Material | Zinc-Plated Steel |
| Brand | Leviton |
| SKU | TBR15-W |
| UPC | 07847738178 |
| Type | Tamper-Resistant Receptacles |
| Title | Default Title |
