Home › Leviton TBR20-S2W 20 A 125 VAC Tamper-Resistant Receptacle White

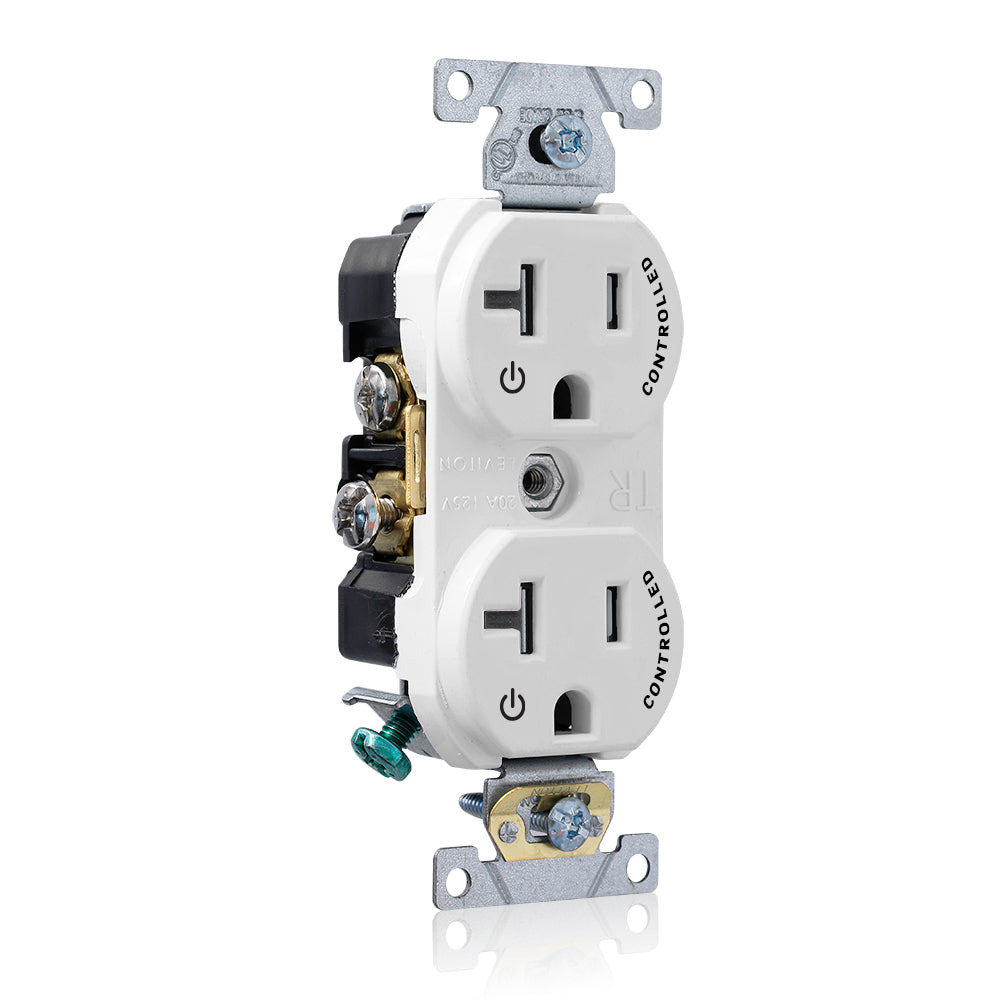

Leviton TBR20-S2W 20 A 125 VAC Tamper-Resistant Receptacle White
Model / SKU: TBR20-S2W · UPC 07847776103$14.31
$14.31 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ Easy returns
| Part Number | TBR20-S2W |
| UPC | 07847776103 |
| Nema | 5-20R |
| RoHS Compliant | Yes |
| At Rated Voltage | 1/2 HP |
| Amperage | 20 A |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Self-Grounding |
| Pole | 2 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Operating Temperature | -40°C to 60°C |
| Body Material | Polypropylene |
| Face Material | Polypropylene |
| Ground Clips | Brass |
| Grounding Screw | Brass 8-32 |
| Line Contacts | Brass Double-Wipe .031 Thick |
| Strap Material | Brass .050" |
| Terminal Clamp | Brass |
| Brand | Leviton |
| SKU | TBR20-S2W |
| UPC | 07847776103 |
| Type | Tamper-Resistant Receptacles |
| Title | Default Title |
