Home › Leviton TCR20-W 20 A 125 VAC Tamper-Resistant Receptacle White

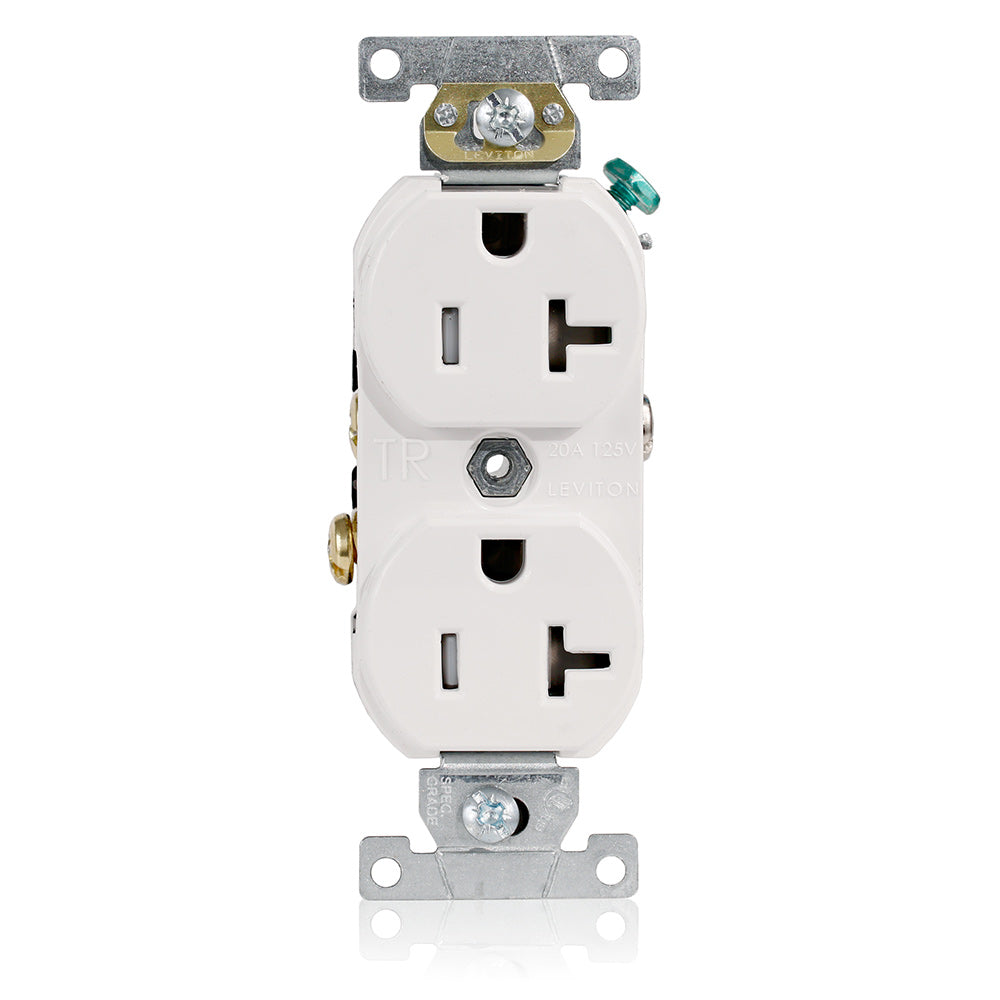

Leviton TCR20-W 20 A 125 VAC Tamper-Resistant Receptacle White
Model / SKU: TCR20-W · UPC 07847765542$5.49
$5.49 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ Easy returns
| Part Number | TCR20-W |
| UPC | 07847765542 |
| RoHS Compliant | Yes |
| Horsepower Rating | 1 HP |
| Amperage | 20 A |
| Current Limiting | Full Rated Current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Self-Grounding |
| Pole | 2 |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Operating Temperature | -40°C to 60°C |
| Body Material | Thermoplastic |
| Face Material | Thermoplastic |
| Ground Clips | Brass |
| Grounding Screw | Plated Steel |
| Line Contacts | Brass .031 Thick |
| Shutter Mechanism | Delrin® Acetal |
| Strap Material | Zinc-Plated Steel |
| Brand | Leviton |
| SKU | TCR20-W |
| UPC | 07847765542 |
| Type | Tamper-Resistant Receptacles |
| Title | Default Title |
