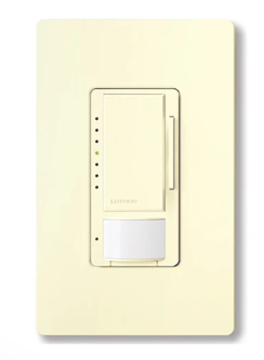

Lutron Vive Maestro 0–10V Occupancy/Vacancy Sensor Dimmer, 8A Switching, 50mA Sink, 120/277V, MRF2S-8SD010-AL, Almond

Passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. Combines a Maestro 0-10 V dimmer with an occupancy sensor. Controls 1-10 VDC electronic fluorescent ballast or LED driver load types. Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout (1, 3, 5, 15, or 30 minutes). Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level. Adjustable sensitivity level: High, med, low, min. Off warning fades lights to off over a period of 10 seconds. Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.). Adaptive switching algorithm for extended relay life. Smart ambient light detection (ALD). Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches. High-end trim and low-end trim to adjust maximum and minimum light levels. Selectable dimming curve-linear or square law. Miswire and incompatible load alert

• Controls 0 -10 V- electronic fluorescent ballasts or LED driver load types
• Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection
• 180 deg sensor field-of-view
• Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
• Occupancy version can be set to auto-on/auto-off or manual-on/auto-off
• Adjustable timeout (1, 5, 15, or 30 minutes). Adjustable settings for auto-on light level(occupancy): Adjustable from 1%-100%. Adjustable settings for auto-off light level (vacancy): Adjustable from 0%-100%. Adjustable sensitivity: High, Med, Low, Min.
• Off warning fades lights to off over a period of 10 seconds
• Adaptive switching algorithm for extended relay life
• Smart ambient light detection (ALD)
• Works with up to 10 Pico remote controls, 1 Radio Powr Savr daylight sensor, and 10 Radio Powr Savr PIR sensors

Spec Sheet (PDF) · Installation Guide (PDF) · Warranty (PDF)
