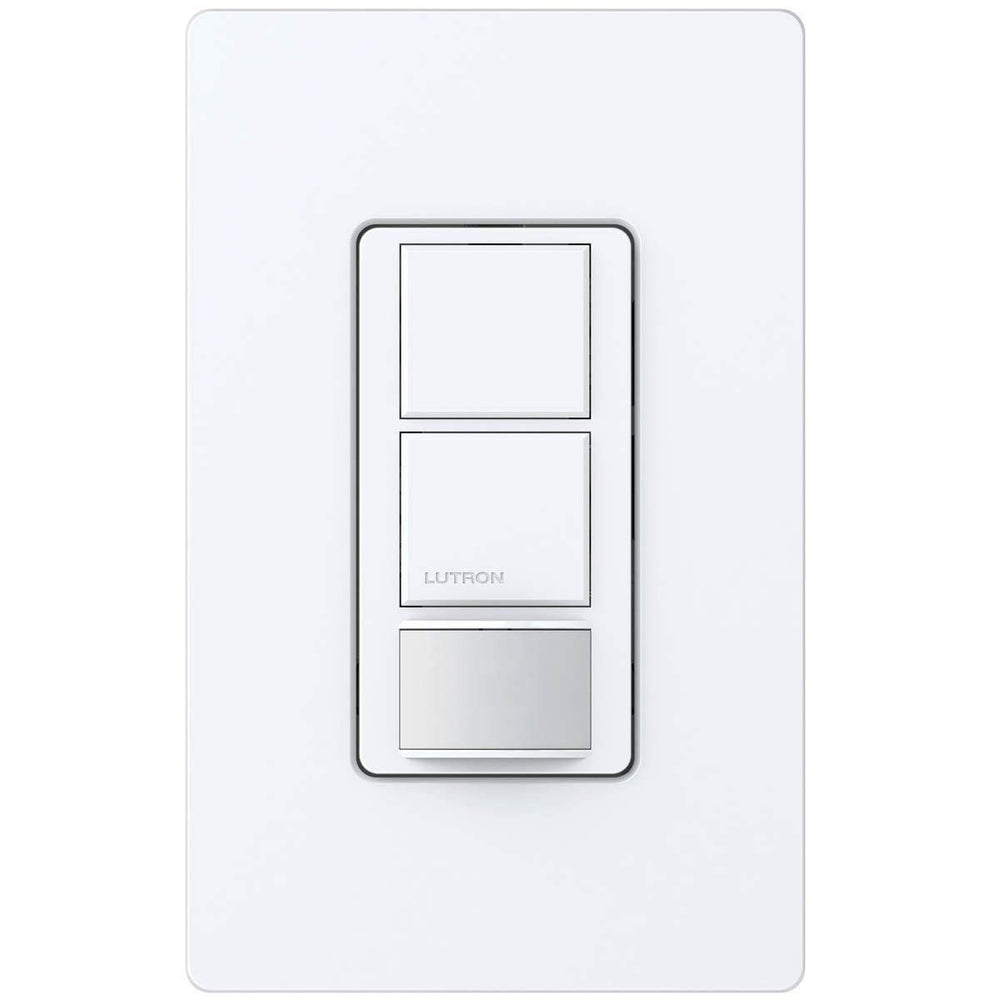

Lutron Maestro Partial-On Dual Circuit Motion Sensor Switch, 6A Light, 120-277V, Single Pole, Ground or Neutral Required, MS-OPS6-DDV-WH, White

Combines two switches with an in-wall, passive infrared (PIR) occupancy or partial-on sensor. The sensor is intended for either control of two circuits or bi-level control of two circuits, as required by certain energy codes. Passive infrared sensor with exclusive Lutron XCT Technology for minor motion detection. 180 degree sensor field-of-view. Tamper-resistant PIR lens. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Smart Ambient Light Detection (ALD) mode uses adaptive algorithm: Sensor learns the user's preferred light level over time. Adjustable timeout for each circuit (1, 5, 15, or 30 minutes). Sensitivity adjustment (high/low). Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent.

• Passive infrared motion detection with exclusive Lutron XCTTM Technology for fine motion detection
• Neutral wire is required
• 180 deg sensor field-of-view
• Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage 180 deg field-of-view
• Occupancy version can be set to auto-on/auto-off or manual-on/auto-off
• Vacancy version available to meet CA title 24 requirements
• Adjustable timeout: 1, 5, 15, or 30 minutes
• High-low sensitivity adjustment
• Occupancy sensing switch lighting loads: incandescent, halogen, MLV, ELV, CFL, LED, magnetic fluorescent, and electronic fluorescent
