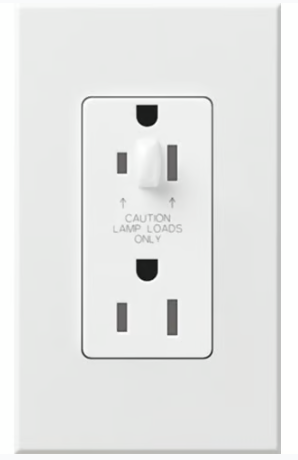

Lutron Architectural 15A Half-Dimming, Tamper Resistant Duplex Receptacle, Wall Plate Included, Matte Finish, NTR-15-HDTR-WH, White

Top half for dimming. Projecting nub prevents standard plug from being used. Requires replacement plug for dimming table and floor lamps. Bottom half is a general use receptacle and will fit standard duplex plugs. Includes 1-gang wallplate. Tamper resistant shutter mechanism.

• Features on receptacle(s) for dimming use reject standard plugs
• Uses standard switched receptacle wiring (HDTR requires two separate live/hot feeds)
• Permanently installed internal tamper resistant shutter mechanism capable of resisting insertion of foreign elements into the device
• Specification grade construction
• Back wire installation capable
• Receptacle face compatible with NEMA designer and Nova T opening wallplates
• Plug may be used with standard receptacles and with new receptacles designed for dimming use
• Plug is compatible with 18 AWG (0.75 mm2) SPT-2 lamp cords
• Plug uses split-shell design for easy wiring and the ability to control cord exit direction

Spec Sheet (PDF) · Installation Guide (PDF) · Warranty (PDF)
