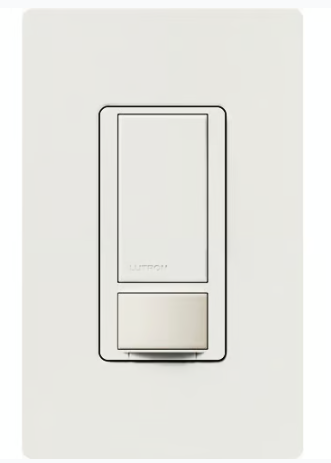

Lutron Maestro Motion Sensor Switch,BAA Compliant, Ground/Neutral Required, 6A Light/3A Fan, 120-277V, Single/Multi-Location, UMS-OPS6M2-DV-WH, White

Combines a Maestro switch with a passive infrared occupancy sensor. Detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly. Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment. Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan. Ground wire required.

• Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection
• 180 deg sensor field-of-view
• Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
• Occupancy version can be set to Auto-ON / Auto-OFF or Manual-ON / Auto-OFF
• Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment
• Load types: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan.
• Certifications & Listings: cULus Listed, NOM Certified

Spec Sheet (PDF) · Installation Guide (PDF) · Warranty (PDF)
