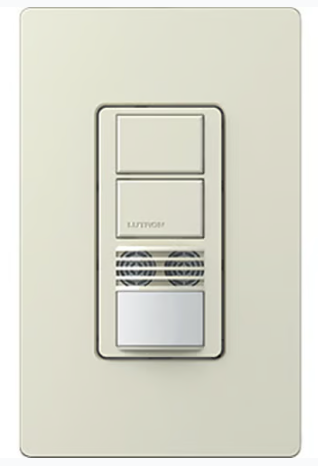

Lutron Maestro Dual Circuit Dual-Tech Motion Sensor Switch, TAA Compliant, 6A, 120-277V, Single Pole, Ground/Neutral Req'd, WMS-A202-LA, Light Almond

TAA Maestro Dual Technology (Dual Tech), dual-circuit occupancy sensor switch, applies exclusive XCT Technology for minor and fine motion detection. Meets Title 24 requirements for multi-level lighting in light almond

• XCT Technology for major, minor, fine, and very fine motion detection
• 180 deg sensor field-of-view
• Up to 900 ft2 (81 m2) major motion coverage and 400ft2 (36m2) minor motion coverage
• Two Ambient Light Detect (ALD) options: Learning ALD Mode: Uses adaptive algorithm. Sensor learns user's preferred light level over time. Fixed ALD mode: Four selectable light level thresholds: Hi, Med, Low, Min
• Occupancy models (MS-A102-XX, MS-B102-XX, MS-A202-XX, MS-B202-XX) can be set to Auto-ON / Auto-OFF or Manual-ON / Auto-OFF per circuit
• Adjustable timeout for each circuit (1, 5, 15, or 30 minutes)
• Sensitivity adjustment; PIR (Hi, Med, Low, Min); Ultrasonic (Hi, Med, Low, Off)
• Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent
• MS-A models DO NOT require neutral wiring.

Spec Sheet (PDF) · Installation Guide (PDF) · Warranty (PDF)
