Home › 0-10V, Triac, ELV Koto™ LED Module

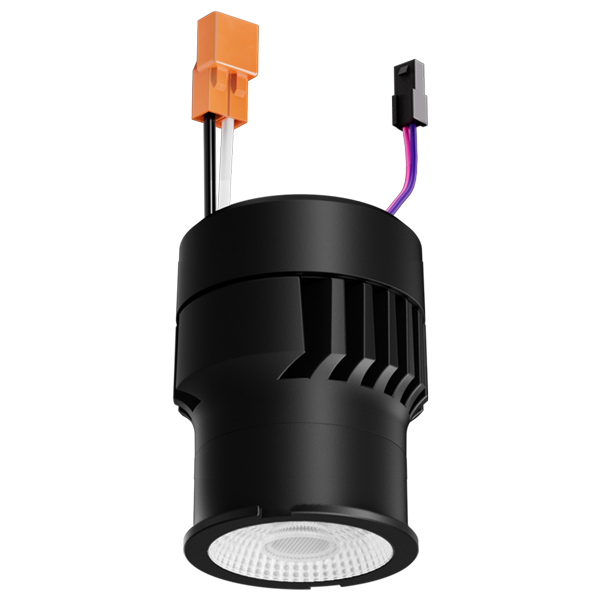

0-10V, Triac, ELV Koto™ LED Module
Model / SKU: ELK10DX27 · UPC 633999218936$108.81
$108.81 each
| Wattage | 11.8W |
|---|---|
| Color temp (CCT) | 2700K/3000K/3500K/4000K/Sunset |
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
Works with 2″, 3″, 4″, and 6″ ELCO 0-10V Recessed Housings and Koto™ Trims
- Integrated 120-277V (50/60Hz), 0-10V/Triac/ELV dimmable driver
- Excellent color rendering 95+ CRI
- Sunset Module ELK10DXSD starts from 3000K and dims to 1800K
- Works in 2″, 3″, 4″, and 6″ ELCO 0-10V Housings with Koto™ twist-on trims
- Energy Star Certified
- Title 24 JA8-2019 Compliant
- Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C), 90° (EP739C)
- Optional: Louver ( L45 ), Linear Lens ( L46 ), Spread Lens ( L47 ), Clear Lens ( L48 ), Frosted Lens ( L49 ), Snoot ( L50 ), Color Shifter ( L51 ), Blue Lens ( L52 ), Pink Lens ( L53 ), Single Asymmetric Lens ( L54 ), Double Asymmetric Lens ( L55 )
- Covered by U.S. PATENTS and Patents Pending
| Wattage | 11.8W |
| Lumens | 1000 lm |
| Voltage | 120-277V |
| Color Temp. | 2700K - 4000K, Sunset |
| Dimmable | 0-10V/Triac/ELV |
| Lamp Type | LED |
| Beam Angle | 38° - 90° |
| CRI | 95 |
| Wet Location | cUL Listed w/Wet Location Trim |
| Damp Location | cUL Listed |
Catalog Numbers
Click a catalog number to open its own page with the price, specs and spec sheet for that exact module.
| Catalog Number | Wattage | CCT | Lumens | Voltage | Dimming | Beam Angle | Spec Sheet |
|---|---|---|---|---|---|---|---|
| ELK10DX27 | 11.8W | 2700K | 1000 lm | 120-277V | 0-10V/Triac/ELV | 38° | |
| ELK10DX30 | 11.8W | 3000K | 1000 lm | 120-277V | 0-10V/Triac/ELV | 38° | |
| ELK10DX35 | 11.8W | 3500K | 1000 lm | 120-277V | 0-10V/Triac/ELV | 38° | |
| ELK10DX40 | 11.8W | 4000K | 1000 lm | 120-277V | 0-10V/Triac/ELV | 38° | |
| ELK10DXSD | 11.8W | Sunset | 1000 lm | 120-277V | 0-10V/Triac/ELV | 38° | |
| ELK10DX30-E | 11.8W | 3000K | 1000 lm | 120-277V | 0-10V/Triac/ELV | 90° | |
| ELK10DX35-E | 11.8W | 3500K | 1000 lm | 120-277V | 0-10V/Triac/ELV | 90° |
| Brand | ELCO Lighting |
| SKU | ELK10DX27 |
| UPC | 633999218936 |
| Type | LED Retrofit |
| Catalog Number | ELK10DX27, ELK10DX30, ELK10DX35, ELK10DX40, ELK10DXSD, ELK10DX30-E, ELK10DX35-E |
