Home › ELCO ELK10DX35 0-10V Triac ELV Koto LED Module - 11.8W, 1000 lm, 3500K, 38° Beam

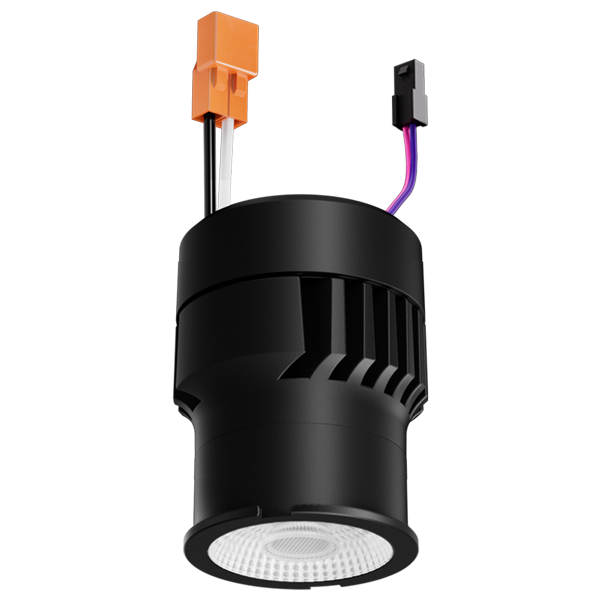

ELCO ELK10DX35 0-10V Triac ELV Koto LED Module - 11.8W, 1000 lm, 3500K, 38° Beam
ELCO ELK10DX35 0-10V Triac ELV Koto LED Module - 11.8W, 1000 lm, 3500K, 38° BeamELCO ELK10DX35 0-10V Triac ELV Koto LED Module - 11.8W, 1000 lm, 3500K, 38° Beam
ELCO Lighting

ELCO ELK10DX35 0-10V Triac ELV Koto LED Module - 11.8W, 1000 lm, 3500K, 38° Beam

ELCO LightingModel / SKU: ELK10DX35 · UPC 633999218974
LED Retrofit
$108.81
$108.81 each
Key specs
Wattage11.8W
Color temp (CCT)3500K
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

ELCO ELK10DX35

Works with 2″, 3″, 4″, and 6″ ELCO 0-10V Recessed Housings and Koto™ Trims

  • Integrated 120-277V (50/60Hz), 0-10V/Triac/ELV dimmable driver
  • Excellent color rendering 95+ CRI
  • Works in 2″, 3″, 4″, and 6″ ELCO 0-10V Housings with Koto™ twist-on trims
  • Energy Star Certified
  • Title 24 JA8-2019 Compliant
  • Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C), 90° (EP739C)
  • Optional: Louver ( L45 ), Linear Lens ( L46 ), Spread Lens ( L47 ), Clear Lens ( L48 ), Frosted Lens ( L49 ), Snoot ( L50 ), Color Shifter ( L51 ), Blue Lens ( L52 ), Pink Lens ( L53 ), Single Asymmetric Lens ( L54 ), Double Asymmetric Lens ( L55 )
  • Covered by U.S. PATENTS and Patents Pending
Catalog Number ELK10DX35
Wattage 11.8W
Lumens 1000 lm
Voltage 120-277V
Color Temp. 3500K
Dimmable 0-10V/Triac/ELV
Lamp Type LED
Beam Angle 38°
CRI 95
Wet Location cUL Listed w/Wet Location Trim
Damp Location cUL Listed
UPC 633999218974

ELK10DX35 Spec Sheet (PDF)

This is one catalog number from the ELCO 0-10V Triac ELV Koto LED Module family. Compare every option on the family page, or browse all ELCO Koto products.
