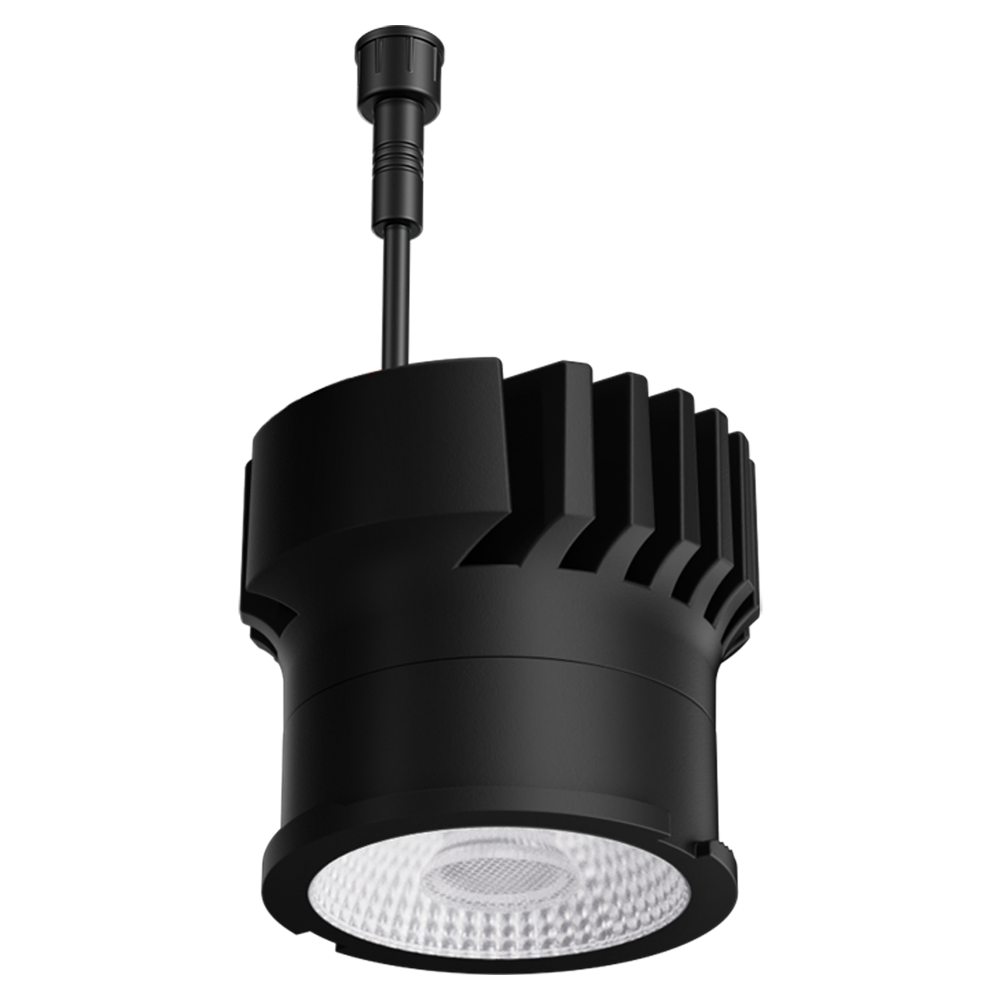

ELCO EKCL2130D Canless Koto LED Module - 10.5W Max, Up to 950 lm, 3000K, 38° Beam

ELCO EKCL2130D

Designed to be installed without a recessed housing. Works with New Construction Frames or Remodel Power Packs and Koto™ Twist-On Trims.

• IC Rated for direct contact with insulation
• Canless Module works with Koto™ frames and power packs
• Driver specified for 120V (Triac/ELV) or 120/277V (0-10V/Triac/ELV) dimming
• Works in 2″, 3″, 4″ and 6″ Canless Koto™ twist-on trims
• Push-&-Twist connector on module for easy installation
• Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C)
• Optional: Louver ( L45 ), Linear Lens ( L46 ), Spread Lens ( L47 ), Frosted Lens ( L49 ), White Koto Snoot ( L50W ). Black Koto Snoot ( L50B ), Color Shifter ( L51 ), Blue Lens ( L52 ), Pink Lens ( L53 )
• Excellent color rendering 95+ CRI
• Offered in 2700K, 3000K, 3500K, 4000K, Sunset Dimming (Dims from 3000K to 1800K), & Human Centric (Dims from 4000K to 2200K)
• Title 24 JA8-2022 Compliant
• Life span of 50,000 hours L70
• Covered by U.S. PATENTS and Patents Pending
• Optional Reflectors: 15º (EP735C), 25º (EP736C), 38º (EP737C), 60º (EP738C)

EKCL2130D Spec Sheet (PDF)

This is one catalog number from the ELCO Canless Koto LED Module family. Compare every option on the family page, or browse all ELCO Koto products.
