Home › Canless Koto™ LED Module

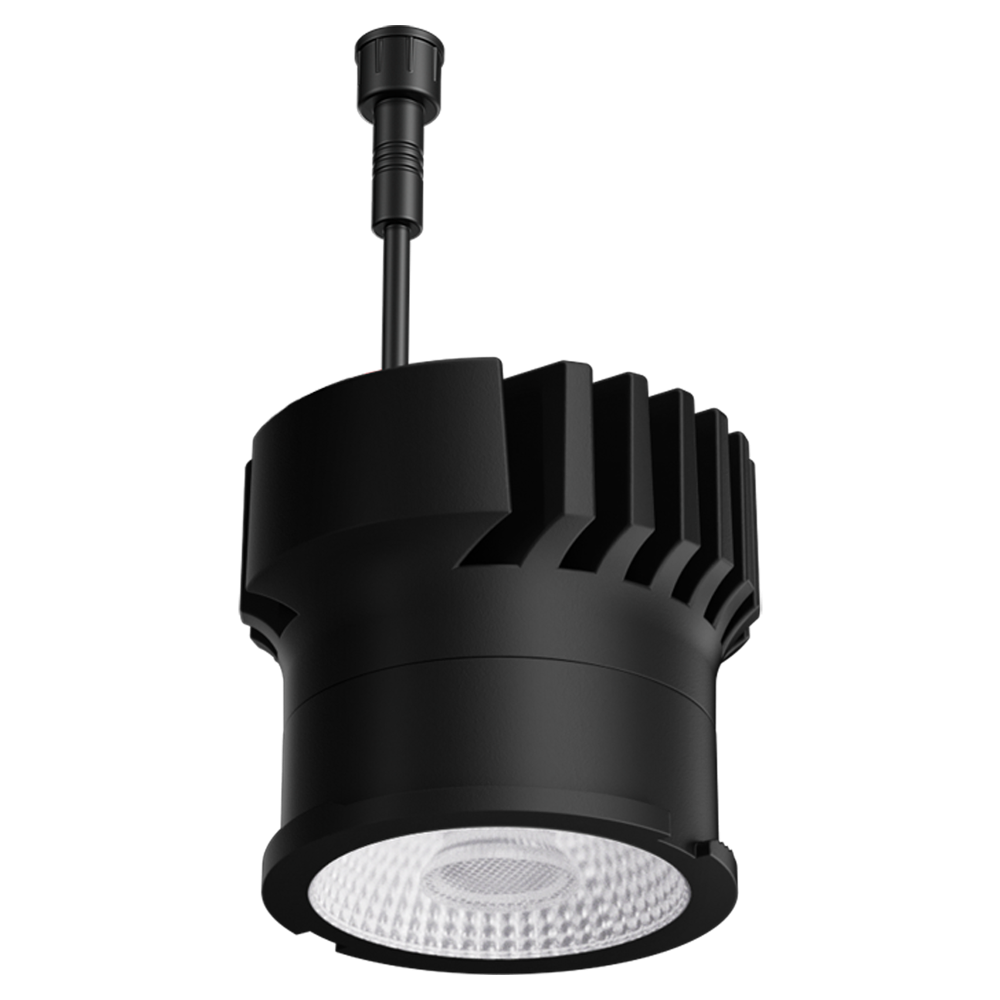

Canless Koto™ LED Module
Model / SKU: EKCL2127D · UPC 633999227792$35.91
$35.91 each
| Wattage | 10.5 MAX |
|---|---|
| Color temp (CCT) | 2700K/3000K/3500K/4000K/Human Centric/Sunset |
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
Designed to be installed without a recessed housing. Works with New Construction Frames or Remodel Power Packs and Koto™ Twist-On Trims.
- IC Rated for direct contact with insulation
- Canless Module works with Koto™ frames and power packs
- Driver specified for 120V (Triac/ELV) or 120/277V (0-10V/Triac/ELV) dimming
- Works in 2″, 3″, 4″ and 6″ Canless Koto™ twist-on trims
- Push-&-Twist connector on module for easy installation
- Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C)
- Optional: Louver ( L45 ), Linear Lens ( L46 ), Spread Lens ( L47 ), Frosted Lens ( L49 ), White Koto Snoot ( L50W ). Black Koto Snoot ( L50B ), Color Shifter ( L51 ), Blue Lens ( L52 ), Pink Lens ( L53 )
- Excellent color rendering 95+ CRI
- Offered in 2700K, 3000K, 3500K, 4000K, Sunset Dimming (Dims from 3000K to 1800K), & Human Centric (Dims from 4000K to 2200K)
- Title 24 JA8-2022 Compliant
- Life span of 50,000 hours L70
- Covered by U.S. PATENTS and Patents Pending
- Optional Reflectors: 15º (EP735C), 25º (EP736C), 38º (EP737C), 60º (EP738C)
| Wattage | 10.5 MAX |
| Lumens | Up to 950 lm |
| Color Temp. | 2700K - 4000K, Human Centric, Sunset |
| Lamp Type | LED |
| Beam Angle | 38° - 90° |
| CRI | 95 |
| Wet Location | cUL Listed w/Wet Location Trim |
| Damp Location | cUL Listed |
Catalog Numbers
Click a catalog number to open its own page with the price, specs and spec sheet for that exact module.
| Catalog Number | Wattage | CCT | Lumens | Beam Angle | Spec Sheet |
|---|---|---|---|---|---|
| EKCL2127D | 10.5 MAX | 2700K | Up to 950 lm | 38° | |
| EKCL2130D | 10.5 MAX | 3000K | Up to 950 lm | 38° | |
| EKCL2135D | 10.5 MAX | 3500K | Up to 950 lm | 38° | |
| EKCL2140D | 10.5 MAX | 4000K | Up to 950 lm | 38° | |
| EKCL21HCD | 10.5 MAX | Human Centric | Up to 950 lm | 90° | |
| EKCL21SDD | 10.5 MAX | Sunset | Up to 950 lm | 38° | |
| EKCL2127D-E | 10.5 MAX | 2700K | Up to 950 lm | 90° | |
| EKCL2130D-E | 10.5 MAX | 3000K | Up to 950 lm | 90° | |
| EKCL2135D-E | 10.5 MAX | 3500K | Up to 950 lm | 90° | |
| EKCL21HCD-E | 10.5 MAX | Human Centric | Up to 950 lm | 90° | |
| EKCL21SDD-E | 10.5 MAX | Sunset | Up to 950 lm | 90° |
| Brand | ELCO Lighting |
| SKU | EKCL2127D |
| UPC | 633999227792 |
| Type | LED Retrofit |
| Catalog Number | EKCL2127D, EKCL2130D, EKCL2135D, EKCL2140D, EKCL21HCD, EKCL21SDD, EKCL2127D-E, EKCL2130D-E, EKCL2135D-E, EKCL21HCD-E, EKCL21SDD-E |
