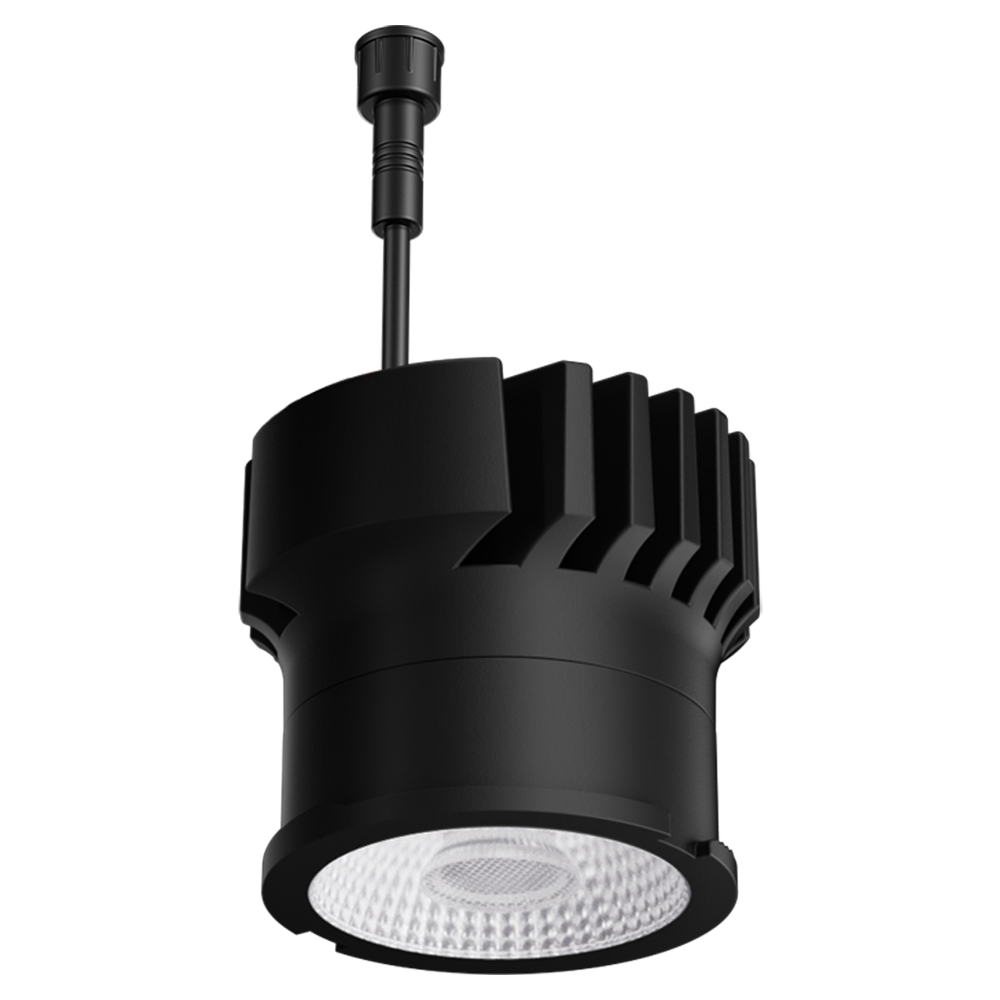

ELCO EKCL2130D-E Canless Koto LED Module - 10.5W Max, Up to 950 lm, 3000K, 90° Beam
ELCO EKCL2130D-E Canless Koto LED Module - 10.5W Max, Up to 950 lm, 3000K, 90° BeamELCO EKCL2130D-E Canless Koto LED Module - 10.5W Max, Up to 950 lm, 3000K, 90° Beam
ELCO Lighting

ELCO EKCL2130D-E Canless Koto LED Module - 10.5W Max, Up to 950 lm, 3000K, 90° Beam

ELCO LightingModel / SKU: EKCL2130D-E
LED Retrofit
$46.71
$46.71 each
Key specs
Wattage10.5W Max
Color temp (CCT)3000K
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

ELCO EKCL2130D-E

Designed to be installed without a recessed housing. Works with New Construction Frames or Remodel Power Packs and Koto™ Twist-On Trims.

  • IC Rated for direct contact with insulation
  • Canless Module works with Koto™ frames and power packs
  • Driver specified for 120V (Triac/ELV) or 120/277V (0-10V/Triac/ELV) dimming
  • Works in 2″, 3″, 4″ and 6″ Canless Koto™ twist-on trims
  • Push-&-Twist connector on module for easy installation
  • Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C)
  • Optional: Louver ( L45 ), Linear Lens ( L46 ), Spread Lens ( L47 ), Frosted Lens ( L49 ), White Koto Snoot ( L50W ). Black Koto Snoot ( L50B ), Color Shifter ( L51 ), Blue Lens ( L52 ), Pink Lens ( L53 )
  • Excellent color rendering 95+ CRI
  • Offered in 2700K, 3000K, 3500K, 4000K, Sunset Dimming (Dims from 3000K to 1800K), & Human Centric (Dims from 4000K to 2200K)
  • Title 24 JA8-2022 Compliant
  • Life span of 50,000 hours L70
  • Covered by U.S. PATENTS and Patents Pending
  • Optional Reflectors: 15º (EP735C), 25º (EP736C), 38º (EP737C), 60º (EP738C)
Catalog Number EKCL2130D-E
Wattage 10.5W Max
Lumens Up to 950 lm
Color Temp. 3000K
Lamp Type LED
Beam Angle 90°
CRI 95
Wet Location cUL Listed w/Wet Location Trim
Damp Location cUL Listed

EKCL2130D-E Spec Sheet (PDF)

This is one catalog number from the ELCO Canless Koto LED Module family. Compare every option on the family page, or browse all ELCO Koto products.
