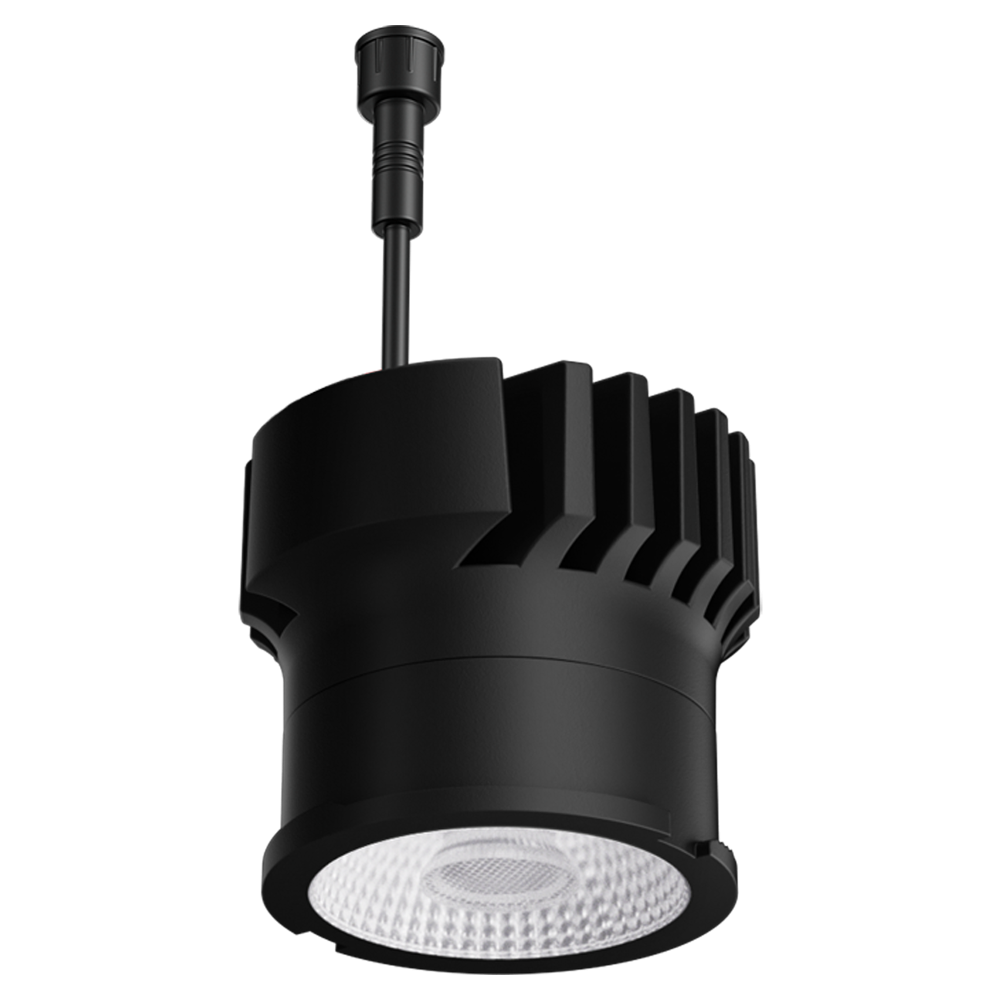

ELCO EKCL21HCD Canless Koto LED Module - 10.5W Max, Up to 950 lm, Human Centric, 90° Beam
ELCO EKCL21HCD Canless Koto LED Module - 10.5W Max, Up to 950 lm, Human Centric, 90° BeamELCO EKCL21HCD Canless Koto LED Module - 10.5W Max, Up to 950 lm, Human Centric, 90° Beam
ELCO Lighting

ELCO EKCL21HCD Canless Koto LED Module - 10.5W Max, Up to 950 lm, Human Centric, 90° Beam

ELCO LightingModel / SKU: EKCL21HCD · UPC 633999467587
LED Retrofit
$53.91
$53.91 each
Key specs
Wattage10.5W Max
Color temp (CCT)Human Centric
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

ELCO EKCL21HCD

Designed to be installed without a recessed housing. Works with New Construction Frames or Remodel Power Packs and Koto™ Twist-On Trims.

  • IC Rated for direct contact with insulation
  • Canless Module works with Koto™ frames and power packs
  • Driver specified for 120V (Triac/ELV) or 120/277V (0-10V/Triac/ELV) dimming
  • Works in 2″, 3″, 4″ and 6″ Canless Koto™ twist-on trims
  • Push-&-Twist connector on module for easy installation
  • Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C)
  • Optional: Louver ( L45 ), Linear Lens ( L46 ), Spread Lens ( L47 ), Frosted Lens ( L49 ), White Koto Snoot ( L50W ). Black Koto Snoot ( L50B ), Color Shifter ( L51 ), Blue Lens ( L52 ), Pink Lens ( L53 )
  • Excellent color rendering 95+ CRI
  • Offered in 2700K, 3000K, 3500K, 4000K, Sunset Dimming (Dims from 3000K to 1800K), & Human Centric (Dims from 4000K to 2200K)
  • Title 24 JA8-2022 Compliant
  • Life span of 50,000 hours L70
  • Covered by U.S. PATENTS and Patents Pending
  • Optional Reflectors: 15º (EP735C), 25º (EP736C), 38º (EP737C), 60º (EP738C)
Catalog Number EKCL21HCD
Wattage 10.5W Max
Lumens Up to 950 lm
Color Temp. Human Centric
Lamp Type LED
Beam Angle 90°
CRI 95
Wet Location cUL Listed w/Wet Location Trim
Damp Location cUL Listed
UPC 633999467587

EKCL21HCD Spec Sheet (PDF)

This is one catalog number from the ELCO Canless Koto LED Module family. Compare every option on the family page, or browse all ELCO Koto products.
