Home › ELCO ELK10CT5-W Koto LED Module with 5-CCT Switch - 12.5W, 1000 lm, 5-CCT Selectable 2700K-5000K, 60° Beam

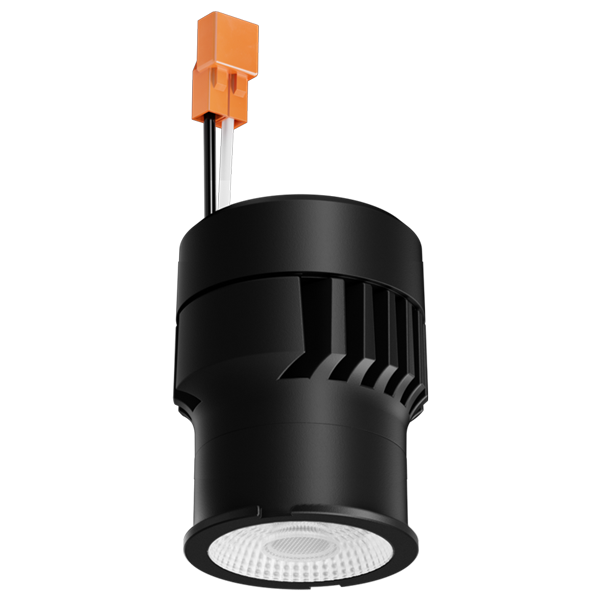

ELCO ELK10CT5-W Koto LED Module with 5-CCT Switch - 12.5W, 1000 lm, 5-CCT Selectable 2700K-5000K, 60° Beam
ELCO Lighting

ELCO ELK10CT5-W Koto LED Module with 5-CCT Switch - 12.5W, 1000 lm, 5-CCT Selectable 2700K-5000K, 60° Beam

ELCO LightingModel / SKU: ELK10CT5-W · UPC 633999398683
LED Retrofit
$103.36
$103.36 each
Key specs
Wattage12.5W
Color temp (CCT)2700K/3000K/3500K/4000K/5000K Selectable
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

ELCO ELK10CT5-W

Works with 2″, 3″, 4″ & 6″ Recessed Housings and Koto™ Trims

  • 5-CCT Switch allows to choose between 2700K, 3000K, 3500K, 4000K or 5000K
  • Integrated 120V dimmable driver Triac/ELV
  • Excellent color rendering 90+ CRI
  • Works in 2″, 3″, 4″ & 6″ ELCO Housings with Koto™ twist-on trims
  • Energy Star Certified. Title 24 JA8-2019 Compliant
  • Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C), 90° (EP739C)
  • Optional: Louver ( L45 ), Linear Lens ( L46 ), Spread Lens ( L47 ), Clear Lens ( L48 ), Frosted Lens ( L49 ), White Koto Snoot ( L50W ). Black Koto Snoot ( L50B ), Color Shifter ( L51 ), Blue Lens ( L52 ), Pink Lens ( L53 ), Single Asymmetric Lens ( L54 ), Double Asymmetric Lens ( L55 )
  • Covered by U.S. PATENTS and Patents Pending
Catalog Number ELK10CT5-W
Wattage 12.5W
Lumens 1000 lm
Voltage 120V
Color Temp. 2700K, 3000K, 3500K, 4000K, 5000K (switch selectable)
Dimmable Triac/ELV
Lamp Type LED
Beam Angle 60°
CRI 95
Wet Location cUL Listed w/Wet Location Trim
Damp Location cUL Listed
UPC 633999398683

ELK10CT5-W Spec Sheet (PDF)

This is one catalog number from the ELCO Koto LED Module with 5-CCT Switch family. Compare every option on the family page, or browse all ELCO Koto products.
