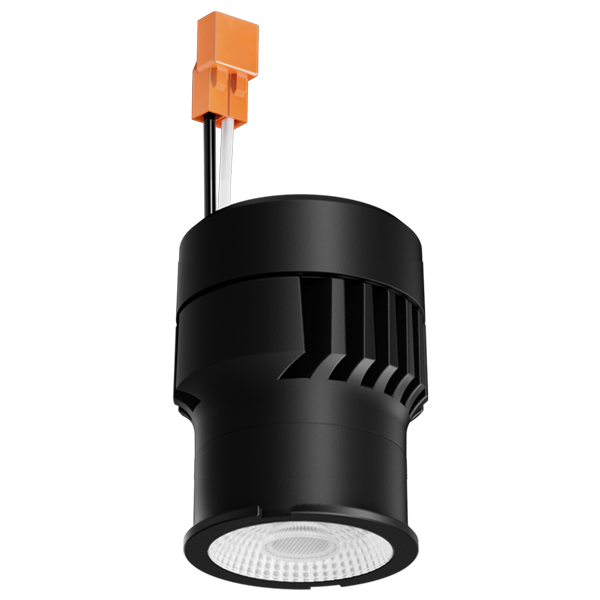

Koto™ LED Module with 5-CCT Switch
Model / SKU: ELK08CT5 · UPC 633999209644$76.30
$76.30 each
| Wattage | 10.5W/12.5W |
|---|---|
| Color temp (CCT) | 2700K/3000K/3500K/4000K/5000K Selectable |
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
Works with 2″, 3″, 4″ & 6″ Recessed Housings and Koto™ Trims
- 5-CCT Switch allows to choose between 2700K, 3000K, 3500K, 4000K or 5000K
- Integrated 120V dimmable driver Triac/ELV
- Excellent color rendering 90+ CRI
- Works in 2″, 3″, 4″ & 6″ ELCO Housings with Koto™ twist-on trims
- Energy Star Certified. Title 24 JA8-2019 Compliant
- Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C), 90° (EP739C)
- Optional: Louver ( L45 ), Linear Lens ( L46 ), Spread Lens ( L47 ), Clear Lens ( L48 ), Frosted Lens ( L49 ), White Koto Snoot ( L50W ). Black Koto Snoot ( L50B ), Color Shifter ( L51 ), Blue Lens ( L52 ), Pink Lens ( L53 ), Single Asymmetric Lens ( L54 ), Double Asymmetric Lens ( L55 )
- Covered by U.S. PATENTS and Patents Pending
| Wattage | 10.5W - 12.5W |
| Lumens | 825 lm - 1000 lm |
| Voltage | 120V |
| Color Temp. | 2700K - 5000K |
| Dimmable | Triac/ELV |
| Lamp Type | LED |
| Beam Angle | 18° - 90° |
| CRI | 95 |
| Wet Location | cUL Listed w/Wet Location Trim |
| Damp Location | cUL Listed |
Catalog Numbers
Click a catalog number to open its own page with the price, specs and spec sheet for that exact module.
| Catalog Number | Wattage | CCT | Lumens | Voltage | Dimming | Beam Angle | Spec Sheet |
|---|---|---|---|---|---|---|---|
| ELK08CT5 | 10.5W | 2700K, 3000K, 3500K, 4000K, 5000K | 825 lm | 120V | Triac/ELV | 38° | |
| ELK10CT5 | 12.5W | 2700K, 3000K, 3500K, 4000K, 5000K | 1000 lm | 120V | Triac/ELV | 38° | |
| ELK08CT5-E | 10.5W | 2700K, 3000K, 3500K, 4000K, 5000K | 825 lm | 120V | Triac/ELV | 90° | |
| ELK08CT5-N | 10.5W | 2700K, 3000K, 3500K, 4000K, 5000K | 825 lm | 120V | Triac/ELV | 25° | |
| ELK08CT5-S | 10.5W | 2700K, 3000K, 3500K, 4000K, 5000K | 825 lm | 120V | Triac/ELV | 18° | |
| ELK08CT5-W | 10.5W | 2700K, 3000K, 3500K, 4000K, 5000K | 825 lm | 120V | Triac/ELV | 60° | |
| ELK10CT5-E | 12.5W | 2700K, 3000K, 3500K, 4000K, 5000K | 1000 lm | 120V | Triac/ELV | 90° | |
| ELK10CT5-N | 12.5W | 2700K, 3000K, 3500K, 4000K, 5000K | 1000 lm | 120V | Triac/ELV | 25° | |
| ELK10CT5-S | 12.5W | 2700K, 3000K, 3500K, 4000K, 5000K | 1000 lm | 120V | Triac/ELV | 18° | |
| ELK10CT5-W | 12.5W | 2700K, 3000K, 3500K, 4000K, 5000K | 1000 lm | 120V | Triac/ELV | 60° |
| Brand | ELCO Lighting |
| SKU | ELK08CT5 |
| UPC | 633999209644 |
| Type | LED Retrofit |
| Catalog Number | ELK08CT5, ELK10CT5, ELK08CT5-E, ELK08CT5-N, ELK08CT5-S, ELK08CT5-W, ELK10CT5-E, ELK10CT5-N, ELK10CT5-S, ELK10CT5-W |
