Home › ELCO ELK1124 Koto LED Module - 12.5W, 1060 lm, 2400K, 38° Beam

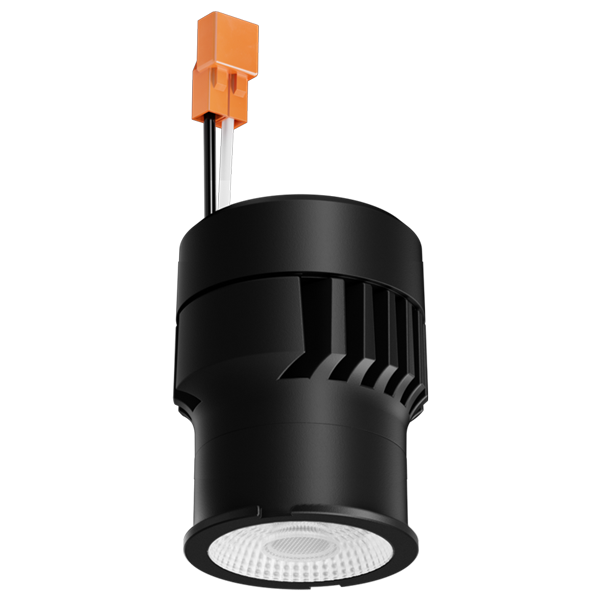

ELCO ELK1124 Koto LED Module - 12.5W, 1060 lm, 2400K, 38° Beam
ELCO ELK1124 Koto LED Module - 12.5W, 1060 lm, 2400K, 38° BeamELCO ELK1124 Koto LED Module - 12.5W, 1060 lm, 2400K, 38° Beam
ELCO Lighting

ELCO ELK1124 Koto LED Module - 12.5W, 1060 lm, 2400K, 38° Beam

ELCO LightingModel / SKU: ELK1124 · UPC 633999453269
LED Retrofit
$103.36
$103.36 each
Key specs
Wattage12.5W
Color temp (CCT)2400K
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

ELCO ELK1124

Works with 2″, 3″, 4″, 5" & 6" Recessed Housings and Koto™ Trims

  • Integrated 120V Dimmable Driver Triac/ELV
  • Excellent color rendering 95+ CRI
  • Works in 2″, 3″, 4″ and 6″ ELCO housings with Koto™ twist-on
  • Energy Star Certified
  • Title 24 JA8-2019 Compliant
  • Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C), 90° (EP739C)
  • Optional: Louver ( L45 ), Linear Lens ( L46 ), Spread Lens ( L47 ), Clear Lens ( L48 ), Frosted Lens ( L49 ), Snoot ( L50 ), Color Shifter ( L51 ), Blue Lens ( L52 ), Pink Lens ( L53 ), Single Asymmetric Lens ( L54 ), Double Asymmetric Lens ( L55 )
  • Covered by U.S. PATENTS and Patents Pending
Catalog Number ELK1124
Series ELK11
Wattage 12.5W
Lumens 1060 lm
Voltage 120V
Color Temp. 2400K
Dimmable Triac/ELV
Lamp Type LED
Beam Angle 38°
CRI 95
Wet Location cUL Listed w/Wet Location Trim
Damp Location cUL Listed
UPC 633999453269

ELK1124 Spec Sheet (PDF)

This is one catalog number from the ELCO Koto LED Module ELK11 Series. Compare every CCT and beam angle on the series page, or browse all ELCO Koto products.
