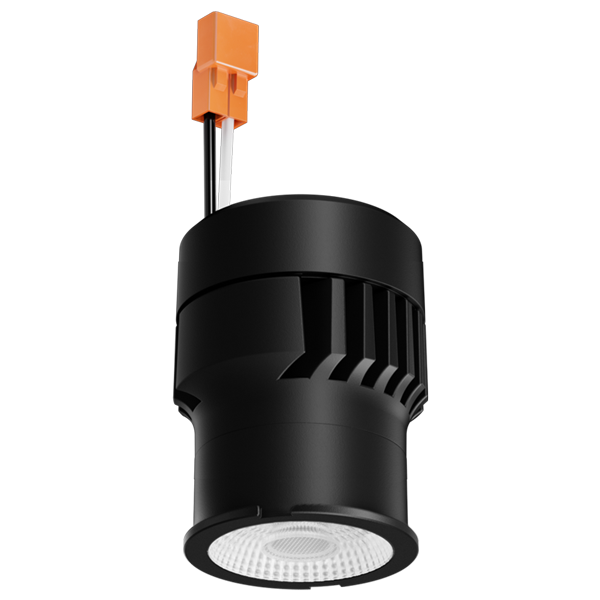

Koto™ LED Module ELK11 Series – 12.5W, 1050–1260 lm
Koto™ LED Module ELK11 Series – 12.5W, 1050–1260 lmKoto™ LED Module ELK11 Series – 12.5W, 1050–1260 lm
ELCO Lighting

Koto™ LED Module ELK11 Series – 12.5W, 1050–1260 lm

ELCO LightingModel / SKU: ELK1124 · UPC 633999453269
LED Retrofit
$103.36
$103.36 each
Key specs
Wattage12.5W
Color temp (CCT)2400K/2700K/3000K/3500K/4000K/Sunset/Human Centric
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

Works with 2″, 3″, 4″, 5" & 6" Recessed Housings and Koto™ Trims

  • Integrated 120V Dimmable Driver Triac/ELV
  • Excellent color rendering 95+ CRI
  • Sunset Module ELK11SD starts from 3000K and dims to 1800K
  • Human Centric Module ELK11HC starts from 4000K and dims to 2200K
  • Works in 2″, 3″, 4″ and 6″ ELCO housings with Koto™ twist-on
  • Energy Star Certified
  • Title 24 JA8-2019 Compliant
  • Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C), 90° (EP739C)
  • Optional: Louver ( L45 ), Linear Lens ( L46 ), Spread Lens ( L47 ), Clear Lens ( L48 ), Frosted Lens ( L49 ), Snoot ( L50 ), Color Shifter ( L51 ), Blue Lens ( L52 ), Pink Lens ( L53 ), Single Asymmetric Lens ( L54 ), Double Asymmetric Lens ( L55 )
  • Covered by U.S. PATENTS and Patents Pending
Series ELK11
Wattage 12.5W
Lumens 1050 lm - 1260 lm
Voltage 120V
Color Temp. 2400K - 4000K, Sunset, Human Centric
Dimmable Triac/ELV
Lamp Type LED
Beam Angle 18° - 90° (38° standard)
CRI 95
Wet Location cUL Listed w/Wet Location Trim
Damp Location cUL Listed

Catalog Numbers

Click a catalog number to open its own page with the price, specs and spec sheet for that exact module.

Catalog Number Wattage CCT Lumens Voltage Dimming Beam Angle Spec Sheet
ELK1124 12.5W 2400K 1060 lm 120V Triac/ELV 38° PDF
ELK1127-S 12.5W 2700K 1100 lm 120V Triac/ELV 18° PDF
ELK1127-N 12.5W 2700K 1100 lm 120V Triac/ELV 25° PDF
ELK1127 12.5W 2700K 1100 lm 120V Triac/ELV 38° PDF
ELK1127-W 12.5W 2700K 1100 lm 120V Triac/ELV 60° PDF
ELK1127-E 12.5W 2700K 1100 lm 120V Triac/ELV 90° PDF
ELK1130-S 12.5W 3000K 1150 lm 120V Triac/ELV 18° PDF
ELK1130-N 12.5W 3000K 1150 lm 120V Triac/ELV 25° PDF
ELK1130 12.5W 3000K 1150 lm 120V Triac/ELV 38° PDF
ELK1130-W 12.5W 3000K 1150 lm 120V Triac/ELV 60° PDF
ELK1130-E 12.5W 3000K 1150 lm 120V Triac/ELV 90° PDF
ELK1135-N 12.5W 3500K 1200 lm 120V Triac/ELV 25° PDF
ELK1135 12.5W 3500K 1200 lm 120V Triac/ELV 38° PDF
ELK1135-W 12.5W 3500K 1200 lm 120V Triac/ELV 60° PDF
ELK1140-S 12.5W 4000K 1260 lm 120V Triac/ELV 18° PDF
ELK1140-N 12.5W 4000K 1260 lm 120V Triac/ELV 25° PDF
ELK1140 12.5W 4000K 1260 lm 120V Triac/ELV 38° PDF
ELK1140-W 12.5W 4000K 1260 lm 120V Triac/ELV 60° PDF
ELK11SD-S 12.5W Sunset 1050 lm 120V Triac/ELV 18° PDF
ELK11SD-N 12.5W Sunset 1050 lm 120V Triac/ELV 25° PDF
ELK11SD 12.5W Sunset 1050 lm 120V Triac/ELV 38° PDF
ELK11SD-W 12.5W Sunset 1050 lm 120V Triac/ELV 60° PDF
ELK11SD-E 12.5W Sunset 1050 lm 120V Triac/ELV 90° PDF
ELK11HC-S 12.5W Human Centric 1050 lm 120V Triac/ELV 18° PDF
ELK11HC-N 12.5W Human Centric 1050 lm 120V Triac/ELV 25° PDF
ELK11HC 12.5W Human Centric 1050 lm 120V Triac/ELV 38° PDF
ELK11HC-W 12.5W Human Centric 1050 lm 120V Triac/ELV 60° PDF
ELK11HC-E 12.5W Human Centric 1050 lm 120V Triac/ELV 90° PDF

View Full Specifications (PDF)
