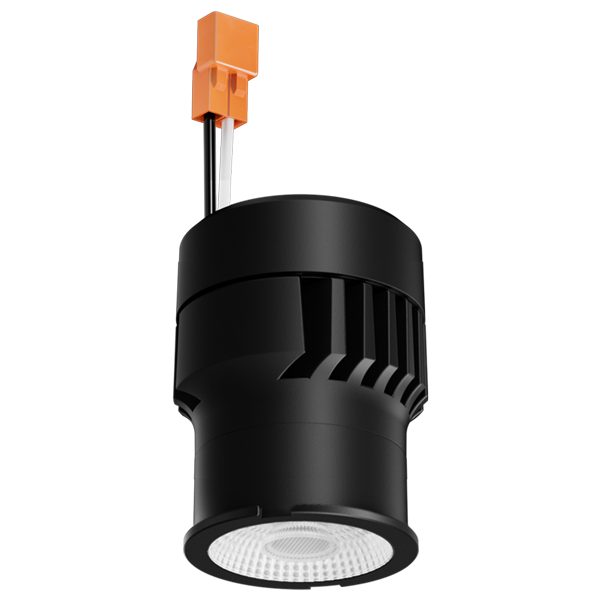

ELCO ELK11SD-E Koto LED Module - 12.5W, 1050 lm, Sunset, 90° Beam
ELCO ELK11SD-E Koto LED Module - 12.5W, 1050 lm, Sunset, 90° BeamELCO ELK11SD-E Koto LED Module - 12.5W, 1050 lm, Sunset, 90° Beam
ELCO Lighting

ELCO ELK11SD-E Koto LED Module - 12.5W, 1050 lm, Sunset, 90° Beam

ELCO LightingModel / SKU: ELK11SD-E
LED Retrofit
$103.36
$103.36 each
Key specs
Wattage12.5W
Color temp (CCT)Sunset
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

ELCO ELK11SD-E

Works with 2″, 3″, 4″, 5" & 6" Recessed Housings and Koto™ Trims

  • Integrated 120V Dimmable Driver Triac/ELV
  • Excellent color rendering 95+ CRI
  • Sunset Module ELK11SD starts from 3000K and dims to 1800K
  • Works in 2″, 3″, 4″ and 6″ ELCO housings with Koto™ twist-on
  • Energy Star Certified
  • Title 24 JA8-2019 Compliant
  • Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C), 90° (EP739C)
  • Optional: Louver ( L45 ), Linear Lens ( L46 ), Spread Lens ( L47 ), Clear Lens ( L48 ), Frosted Lens ( L49 ), Snoot ( L50 ), Color Shifter ( L51 ), Blue Lens ( L52 ), Pink Lens ( L53 ), Single Asymmetric Lens ( L54 ), Double Asymmetric Lens ( L55 )
  • Covered by U.S. PATENTS and Patents Pending
Catalog Number ELK11SD-E
Series ELK11
Wattage 12.5W
Lumens 1050 lm
Voltage 120V
Color Temp. Sunset
Dimmable Triac/ELV
Lamp Type LED
Beam Angle 90°
CRI 95
Wet Location cUL Listed w/Wet Location Trim
Damp Location cUL Listed

ELK11SD-E Spec Sheet (PDF)

This is one catalog number from the ELCO Koto LED Module ELK11 Series. Compare every CCT and beam angle on the series page, or browse all ELCO Koto products.
