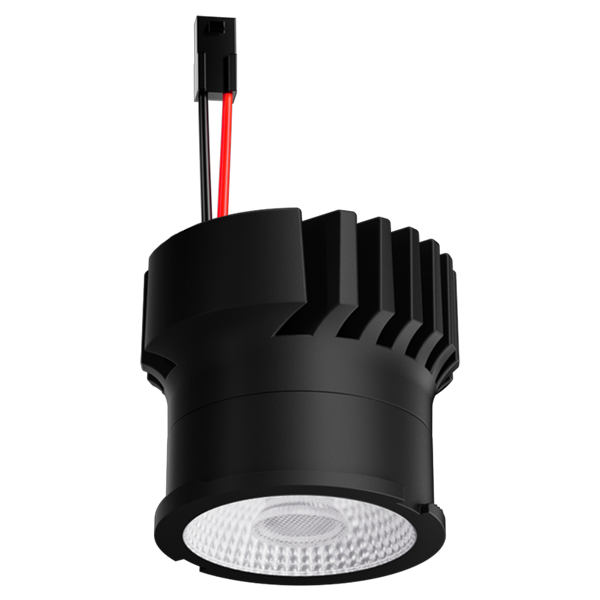

ELCO ELK19SD Koto Architectural LED Light Engine - 14.7W Max, 940 lm Max, Sunset, 38° Beam
ELCO ELK19SD Koto Architectural LED Light Engine - 14.7W Max, 940 lm Max, Sunset, 38° BeamELCO ELK19SD Koto Architectural LED Light Engine - 14.7W Max, 940 lm Max, Sunset, 38° Beam
ELCO Lighting

ELCO ELK19SD Koto Architectural LED Light Engine - 14.7W Max, 940 lm Max, Sunset, 38° Beam

ELCO LightingModel / SKU: ELK19SD · UPC 633999048878
LED Retrofit
$53.91
$53.91 each
Key specs
Wattage14.7W Max
Color temp (CCT)Sunset
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

ELCO ELK19SD

Works with 2″, 3″, 4″ & 6″ Koto™ Architectural Recessed Housings and Koto™ Trims

  • Light engine used with Koto™ Architectural Housings
  • See Koto™ Architectural housings for lumen output options. Final lumen output is determined by housing.
  • Driver on housing extends lifespan and allows for more dimming and EM options
  • Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C)
  • Optional: Louver ( L45 ), Linear Lens ( L46 ), Spread Lens ( L47 ), Frosted Lens ( L49 ),
  • Optional Reflectors: 15º (EP735C), 25º (EP736C), 38º (EP737C), 60º (EP738C)
  • Works in 2″, 3″, 4″ & 6″ ELCO Housings with Koto™ twist-on trims
  • Excellent color rendering 95+ CRI
  • Sunset option dims from 3000K to 1800K
  • ENERGY STAR Certified
  • Title 24 JA8-2019 Compliant
  • Life span of 50,000 hours L70
  • Covered by U.S. PATENTS and Patents Pending
Catalog Number ELK19SD
Wattage 14.7W Max
Lumens 940 lm Max
Color Temp. Sunset
Lamp Type LED
Beam Angle 38°
CRI 95
Wet Location cUL Listed w/Wet Location Trim
Damp Location cUL Listed
UPC 633999048878

ELK19SD Spec Sheet (PDF)

This is one catalog number from the ELCO Koto Architectural LED Light Engine family. Compare every option on the family page, or browse all ELCO Koto products.
