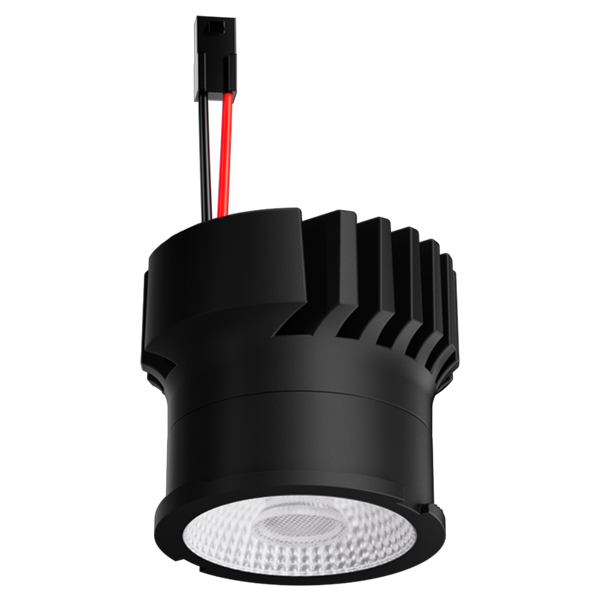

Koto™ Architectural LED Light Engine
Model / SKU: ELK19SD · UPC 633999048878$53.91
$53.91 each
| Wattage | 14.7 MAX./18.9 MAX. |
|---|---|
| Color temp (CCT) | Sunset/2700K/3000K/3500K/4000K |
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
Works with 2″, 3″, 4″ & 6″ Koto™ Architectural Recessed Housings and Koto™ Trims
- Light engine used with Koto™ Architectural Housings
- See Koto™ Architectural housings for lumen output options. Final lumen output is determined by housing.
- Driver on housing extends lifespan and allows for more dimming and EM options
- Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C)
- Optional: Louver ( L45 ), Linear Lens ( L46 ), Spread Lens ( L47 ), Frosted Lens ( L49 ),
- Optional Reflectors: 15º (EP735C), 25º (EP736C), 38º (EP737C), 60º (EP738C)
- Works in 2″, 3″, 4″ & 6″ ELCO Housings with Koto™ twist-on trims
- Excellent color rendering 95+ CRI
- Sunset option dims from 3000K to 1800K
- ENERGY STAR Certified
- Title 24 JA8-2019 Compliant
- Life span of 50,000 hours L70
- Covered by U.S. PATENTS and Patents Pending
| Wattage | 14.7 MAX.W - 18.9 MAX.W |
| Lumens | 940 lm - 1950 lm |
| Color Temp. | 2700K - 4000K, Sunset |
| Lamp Type | LED |
| Beam Angle | 38° - 90° |
| CRI | 95 |
| Wet Location | cUL Listed w/Wet Location Trim |
| Damp Location | cUL Listed |
Catalog Numbers
Click a catalog number to open its own page with the price, specs and spec sheet for that exact module.
| Catalog Number | Wattage | CCT | Lumens | Beam Angle | Spec Sheet |
|---|---|---|---|---|---|
| ELK19SD | 14.7 MAX. | Sunset | 940 MAX. lm | 38° | |
| ELK1927D | 14.7 MAX. | 2700K | 970 MAX. lm | 38° | |
| ELK1930D | 14.7 MAX. | 3000K | 1000 MAX. lm | 38° | |
| ELK1935D | 14.7 MAX. | 3500K | 1030 MAX. lm | 38° | |
| ELK1940D | 14.7 MAX. | 4000K | 1050 MAX. lm | 38° | |
| ELK2127D | 18.9 MAX. | 2700K | 1360 MAX. lm | 38° | |
| ELK2130D | 18.9 MAX. | 3000K | 1430 MAX. lm | 38° | |
| ELK2135D | 18.9 MAX. | 3500K | 1510 MAX. lm | 38° | |
| ELK2140D | 18.9 MAX. | 4000K | 1690 MAX. lm | 38° | |
| ELK2427D | 18.9 MAX. | 2700K | 1720 MAX. lm | 38° | |
| ELK2430D | 18.9 MAX. | 3000K | 1800 MAX. lm | 38° | |
| ELK2435D | 18.9 MAX. | 3500K | 1875 MAX. lm | 38° | |
| ELK2440D | 18.9 MAX. | 4000K | 1950 MAX. lm | 38° | |
| ELK19SD-E | 14.7 MAX. | Sunset | 940 MAX. lm | 90° | |
| ELK1935D-E | 14.7 MAX. | 3500K | 1030 MAX. lm | 90° | |
| ELK2130D-E | 18.9 MAX. | 3000K | 1430 MAX. lm | 90° | |
| ELK2135D-E | 18.9 MAX. | 3500K | 1510 MAX. lm | 90° | |
| ELK2430D-E | 18.9 MAX. | 3000K | 1800 MAX. lm | 90° | |
| ELK2435D-E | 18.9 MAX. | 3500K | 1875 MAX. lm | 90° |
| Brand | ELCO Lighting |
| SKU | ELK19SD |
| UPC | 633999048878 |
| Type | LED Retrofit |
| Catalog Number | ELK19SD, ELK1927D, ELK1930D, ELK1935D, ELK1940D, ELK2127D, ELK2130D, ELK2135D, ELK2140D, ELK2427D, ELK2430D, ELK2435D, ELK2440D, ELK19SD-E, ELK1935D-E, ELK2130D-E, ELK2135D-E, ELK2430D-E, ELK2435D-E |
