Home › ELCO ELK2130D-E Koto Architectural LED Light Engine - 18.9W Max, 1430 lm Max, 3000K, 90° Beam

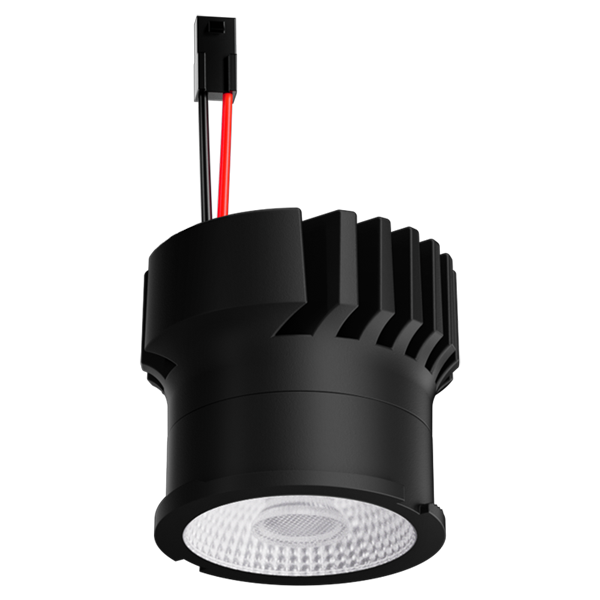

ELCO ELK2130D-E Koto Architectural LED Light Engine - 18.9W Max, 1430 lm Max, 3000K, 90° Beam
ELCO ELK2130D-E Koto Architectural LED Light Engine - 18.9W Max, 1430 lm Max, 3000K, 90° BeamELCO ELK2130D-E Koto Architectural LED Light Engine - 18.9W Max, 1430 lm Max, 3000K, 90° Beam
ELCO Lighting

ELCO ELK2130D-E Koto Architectural LED Light Engine - 18.9W Max, 1430 lm Max, 3000K, 90° Beam

ELCO LightingModel / SKU: ELK2130D-E
LED Retrofit
$59.31
$59.31 each
Key specs
Wattage18.9W Max
Color temp (CCT)3000K
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

ELCO ELK2130D-E

Works with 2″, 3″, 4″ & 6″ Koto™ Architectural Recessed Housings and Koto™ Trims

  • Light engine used with Koto™ Architectural Housings
  • See Koto™ Architectural housings for lumen output options. Final lumen output is determined by housing.
  • Driver on housing extends lifespan and allows for more dimming and EM options
  • Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C)
  • Optional: Louver ( L45 ), Linear Lens ( L46 ), Spread Lens ( L47 ), Frosted Lens ( L49 ),
  • Optional Reflectors: 15º (EP735C), 25º (EP736C), 38º (EP737C), 60º (EP738C)
  • Works in 2″, 3″, 4″ & 6″ ELCO Housings with Koto™ twist-on trims
  • Excellent color rendering 95+ CRI
  • Sunset option dims from 3000K to 1800K
  • ENERGY STAR Certified
  • Title 24 JA8-2019 Compliant
  • Life span of 50,000 hours L70
  • Covered by U.S. PATENTS and Patents Pending
Catalog Number ELK2130D-E
Wattage 18.9W Max
Lumens 1430 lm Max
Color Temp. 3000K
Lamp Type LED
Beam Angle 90°
CRI 95
Wet Location cUL Listed w/Wet Location Trim
Damp Location cUL Listed

ELK2130D-E Spec Sheet (PDF)

This is one catalog number from the ELCO Koto Architectural LED Light Engine family. Compare every option on the family page, or browse all ELCO Koto products.
