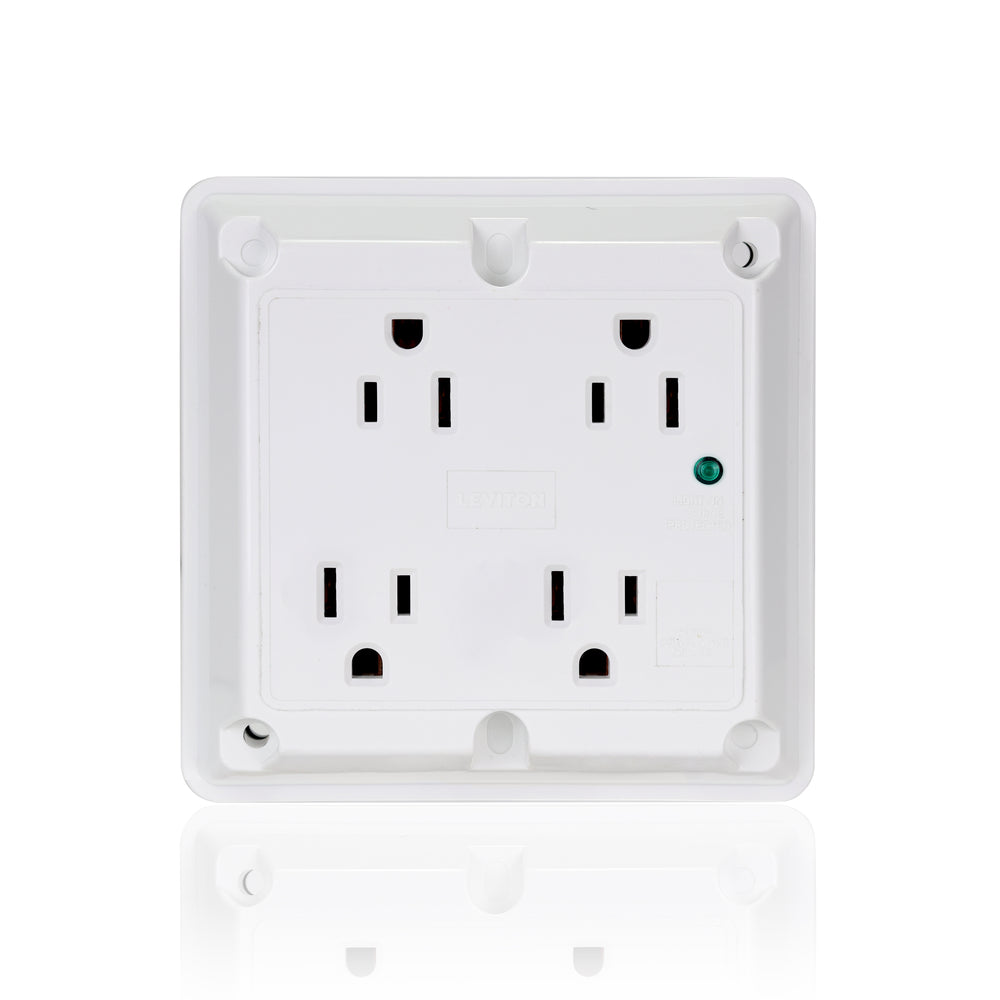

Leviton 5480-W 15 A 125 VAC Surge Protection White
Model / SKU: 5480-W · UPC 07847784352$68.93
$68.93 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ Easy returns
| Part Number | 5480-W |
| UPC | 07847784352 |
| Nema | 5-15R |
| Amperage | 15 A |
| Current Limiting | Full Rated Current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Grounding |
| Pole | 2 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -40°C to 60°C |
| Body Material | Nylon |
| Clamp Nuts | Zinc-Plated Steel |
| Face Material | Nylon |
| Ground Clips | Brass-Plated Steel |
| Grounding Screw | Brass-Plated Steel |
| Line Contacts | Brass Triple-Wipe |
| Shutter Mechanism | Delrin® Acetal |
| Brand | Leviton |
| SKU | 5480-W |
| UPC | 07847784352 |
| Type | Surge Protection |
| Title | Default Title |
