Home › Leviton T5633-HGW 15 A 125 VAC USB Receptacle White

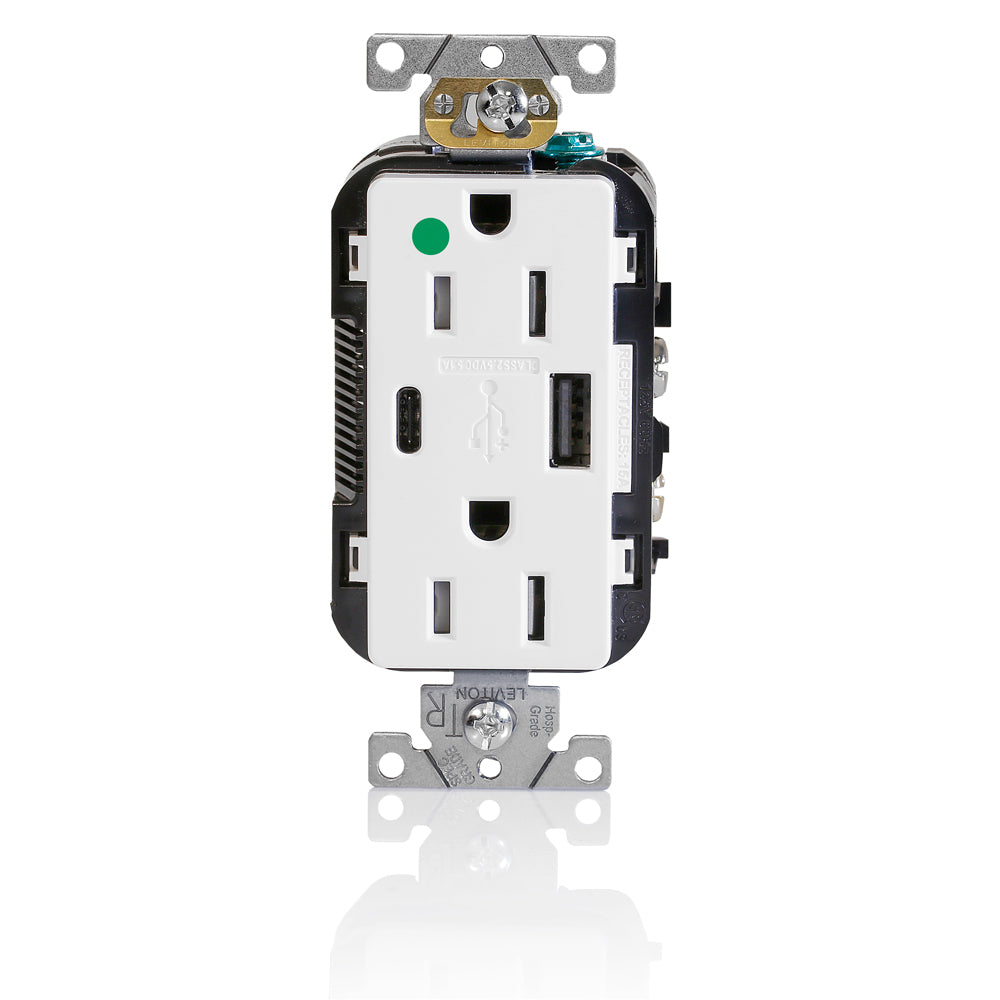

Leviton T5633-HGW 15 A 125 VAC USB Receptacle White
Model / SKU: T5633-HGW · UPC 07847789342$53.91
$53.91 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
| Part Number | T5633-HGW |
| UPC | 07847789342 |
| Amperage | 15 A |
| Grounding | Self-Grounding |
| Pole | 2 |
| Voltage | 125 VAC |
| Wire | 3 |
| Flammability | Rated V-0 per UL 94 |
| Operating Temperature | -10°C to 40°C |
| Body Material | PBT Thermoplastic polyester resin |
| Face Material | PBT |
| Ground Clips | Brass |
| Grounding Screw | Steel |
| Line Contacts | Brass |
| Strap Material | Steel |
| Terminal Screws | Steel |
| Mounting Screws | Steel |
| Product ID | Stamped on Strap |
| Screw Terminal Torque | 14-18 in-lbs |
| Terminal Accom. | 14-12 AWG |
Leviton%20T5633%20T5833%20Instruction%20Sheet%20EnFrSp.pdf
Straight%20Blade%20Receptacle%20Catalog%20Q-1101H.pdf
| Brand | Leviton |
| SKU | T5633-HGW |
| UPC | 07847789342 |
| Type | USB Receptacles |
| Title | Default Title |
