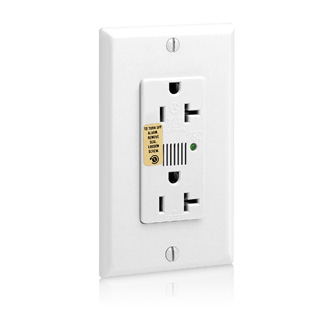

Leviton 7380-W 20 A 125 VAC Surge Protection White
Model / SKU: 7380-W · UPC 07847710230$62.55
$62.55 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
| Part Number | 7380-W |
| UPC | 07847710230 |
| Nema | 5-20R |
| At Rated Voltage | 1 HP |
| Amperage | 20 A |
| Current Limiting | Full Rated Current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -40°C to 60°C |
| Body Material | Polycarbonate |
| Clamp Nuts | Zinc-Plated Steel |
| Face Material | Polycarbonate |
| Grounding Screw | Plated Steel |
| Line Contacts | Brass Triple-Wipe |
| Strap Material | Steel |
| Terminal Screws | Brass 10-32 |
| Brand | Leviton |
| SKU | 7380-W |
| UPC | 07847710230 |
| Type | Surge Protection |
| Title | Default Title |
