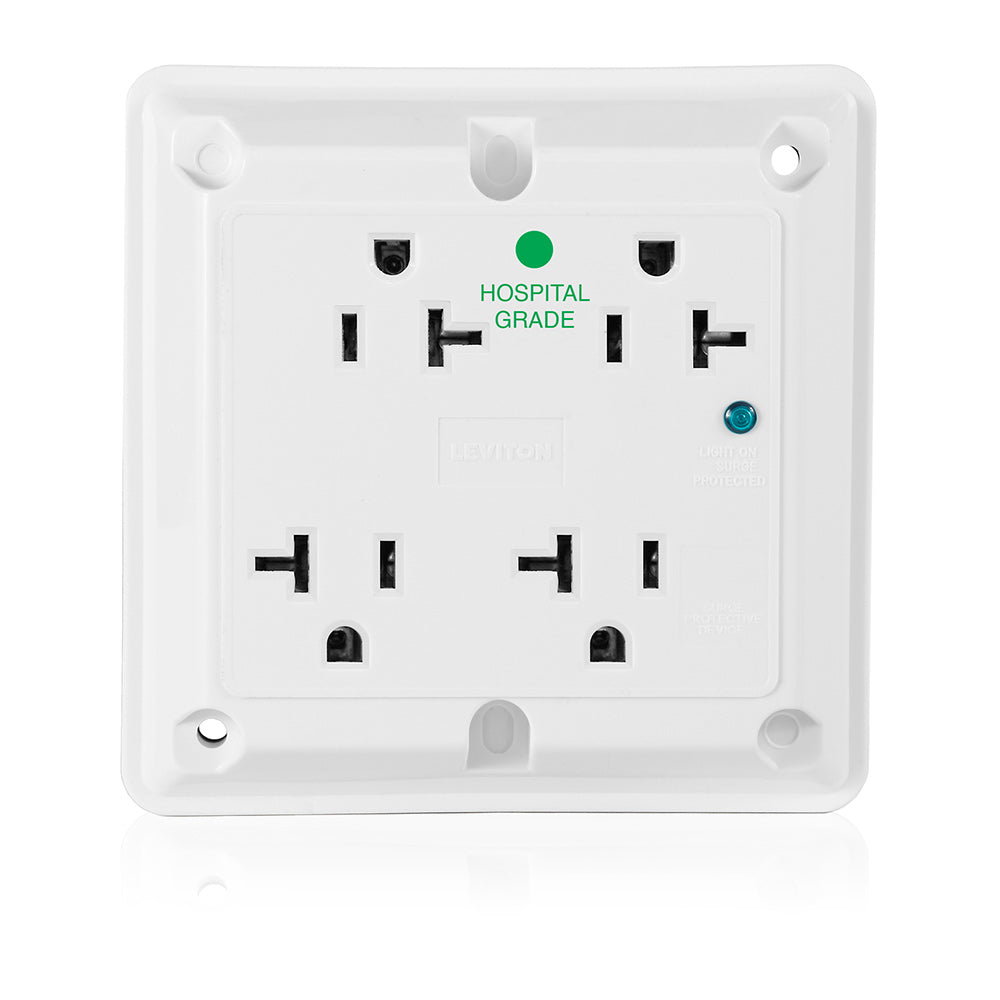

Leviton 8490-W 20 A 125 VAC Surge Protection White
Model / SKU: 8490-W · UPC 07847785147$79.22
$79.22 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ Easy returns
| Part Number | 8490-W |
| UPC | 07847785147 |
| Nema | 5-20R |
| At Rated Voltage | 1 HP |
| Amperage | 20 A |
| Current Limiting | Full Rated Current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Temperature Rise | Max 30C after 50 cycles OL at 150 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Operating Temperature | -40°C to 60°C |
| Body Material | Nylon |
| Face Material | Nylon |
| Grounding Screw | Steel 8-32 w/ 12AWG Green 8 Inch Pigtail |
| Line Contacts | Phosphor Bronze |
| Mounting Screws | Zinc-Plated Steel 8-32 |
| Terminal Screws | Brass 8-32 |
| Yoke | Zinc-Plated Steel |
| Product ID | Ratings are permanently marked on device |
4-in-1%20Product%20Spotlight.pdf
| Brand | Leviton |
| SKU | 8490-W |
| UPC | 07847785147 |
| Type | Surge Protection |
| Title | Default Title |
