Home › Leviton AGRBF-W 20 Amp Feed-Through, 125 Volt Dual Function Blank AFCI/GFCI Receptacle/Outlet, Monochromatic, back

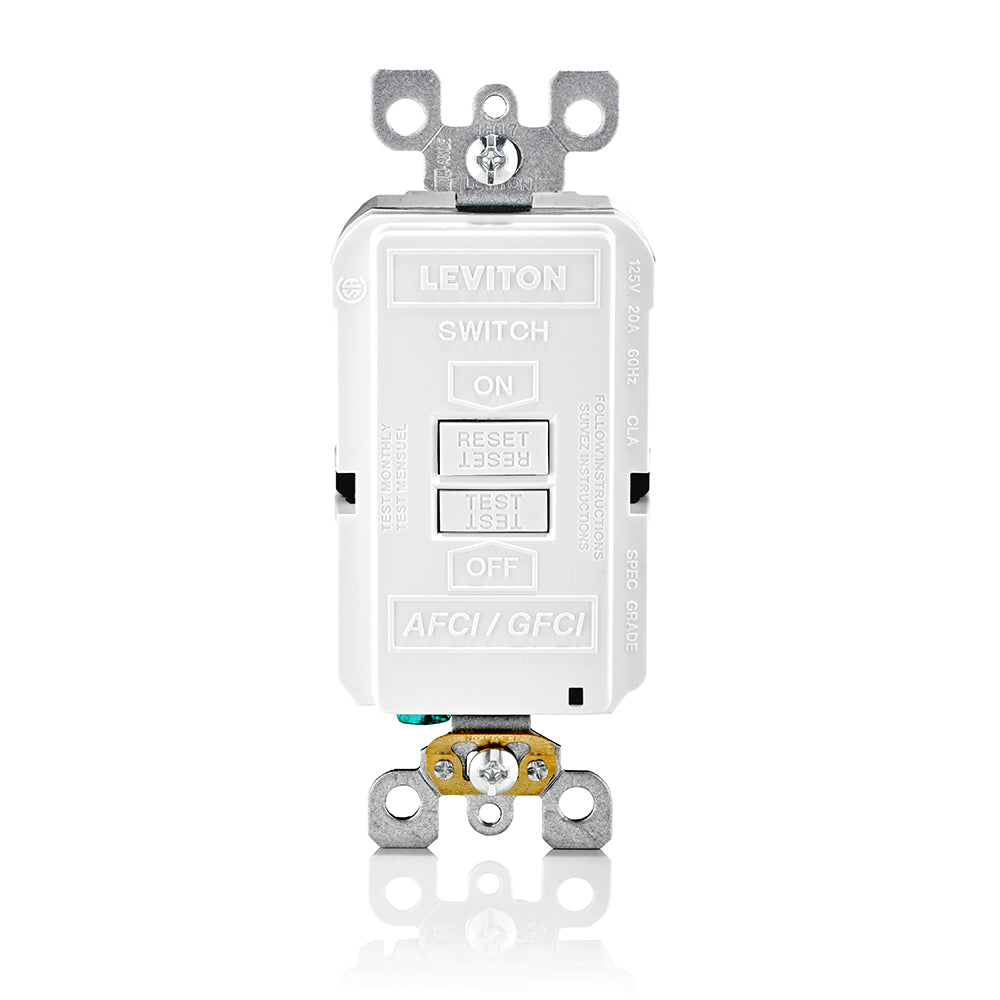

Leviton AGRBF-W 20 Amp Feed-Through, 125 Volt Dual Function Blank AFCI/GFCI Receptacle/Outlet, Monochromatic, back
Leviton

Leviton AGRBF-W 20 Amp Feed-Through, 125 Volt Dual Function Blank AFCI/GFCI Receptacle/Outlet, Monochromatic, back

LevitonModel / SKU: AGRBF-W · UPC 07847780332
GFCI Receptacles
$37.78
$37.78 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

White - 20 Amp Feed-Through, 125 Volt Dual Function Blank AFCI/GFCI Receptacle/Outlet, Monochromatic, back and side wired, wallplate/faceplate sold separately, self-grounding clip included

Part Number AGRBF-W
UPC 07847780332
Amperage 20 A
Dielectric Voltage 1250 VAC
Grounding Self-Grounding
Horsepower Rating 1 hp
Pole(s) 2
Power Supply Input and Frequency 125V, 60Hz
Short Circuit Current Rating 10 kA
Temperature Rise Max 30°C
Trip Level Class A
Voltage 125 VAC
Wire(s) 3
Operating Temperature Maximum Continuous 66°C, Minimum -35°C (w/o impact)
Body Thermoplastic
Face Thermoplastic
Grounding Screw #8 Galvanized Steel
Line Contacts Brass
Mounting Strap Galvanized Steel
Self-Grounding Clip Yes

Dual-Function-AFCI-GFCI-Product-Bulletin.pdf

G-9595A%20AFCI%20GFCI%20Dual%20Function%20REV%20PB_VFR.pdf

GFCIs-LED-Indicator-Light-Diagnosis-Instruction-Sheet.pdf

Product page on leviton.com
