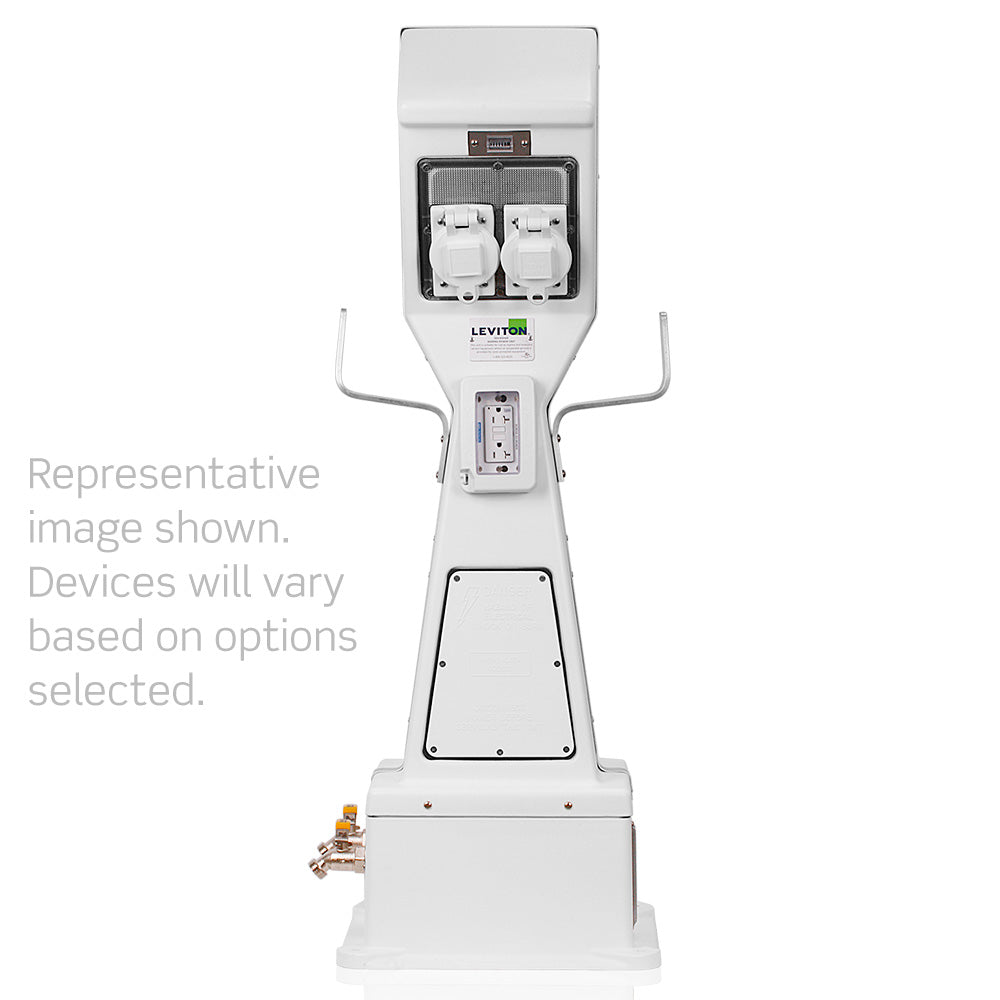

Leviton D532S Power Pedestal for Marine Applications; Docksider Base Includes 50A (125/250V) Receptacle with Standard
Model / SKU: D532S · UPC 07847702816- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
Power Pedestal for Marine Applications; Docksider Base Includes 50A (125/250V) Receptacle with Standard Breaker, 30A (125V) Receptacle with Standard Breaker, 20A GFCI Receptacles with Standard Breaker, White LED w/ Photocell, and White Receptacle Covers. Includes Single Phase Loop Distribution Block, 3/4” 1/4 Turn Water Valve, No Meter, and No Breaker
| Part Number | D532S |
| UPC | 07847702816 |
| Max Amperage | 240A Max |
| Voltage | 125/250 VAC |
| Pedestal Material | Noryl (Resin) |
| Construction | Molded Body |
| Mounting Hardware | Anchors Included |
| Application | Marine |
| Color | White |
| Base | Docksider Surface Mount |
| Hinge Type | Pedestal |
| Kitted Options | Comes with Leviton Receptacles |
| Top | Twist Lock Receptacles, 20A Straight Blade |
| Certification/Listing | UL-231, CSA 22.2 No. 29, NFPA 303, NFPA 70 |
| NEMA | NEMA 3R |
| Warranty | Housing: 5-Year,Devices:1-Year |
docksider_spec_sheet_ci_1499_leviton.pdf
DS1_power_pedestal_marine_form_ci_q1489_leviton.pdf
spec-sheet-docksider-ci-q-1499-frc-leviton.pdf
- Certifications & Listings: UL Listed, CSA
| Brand | Leviton |
| SKU | D532S |
| UPC | 07847702816 |
| Type | EV Charging |
| Title | Default Title |
