Home › Leviton GUAC2-W Get protection from ground faults with the convenience of built-in USB 24W Type A / C charging with this 20A
Leviton GUAC2-W Get protection from ground faults with the convenience of built-in USB 24W Type A / C charging with this 20A
Model / SKU: GUAC2-W · UPC 07847799611$51.74
$51.74 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ Easy returns

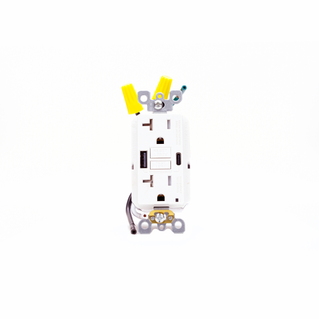

Get protection from ground faults with the convenience of built-in USB 24W Type A / C charging with this 20A white outlet from Leviton.
| Part Number | GUAC2-W |
| UPC | 07847799611 |
| Nema | 5-20R |
| Amperage | 20 A |
| Dielectric Voltage | 1250 VAC |
| Grounding | Self-Grounding |
| Horsepower Rating | 1 hp |
| Pole(s) | 2 |
| Power Supply Input and Frequency | 125V, 60Hz |
| Temperature Rise | Max 30°C |
| Trip Level | Class A |
| Voltage | 125 VAC |
| Wire(s) | 5 |
| Flammability Rating | UL94, 5VA |
| Operating Temperature | Maximum Continuous 40°C, Minimum -10°C (w/o impact) |
| Body Material | Thermoplastic |
| Face Material | Thermoplastic |
| Line Contacts | Brass |
| Mounting Strap | Galvanized Steel |
| TR Shutter | Thermoplastic |
Leviton%20GUAC%20Instruction%20Sheet%20English.pdf
Leviton%20GUAC%20Instruction%20Sheet%20French.pdf
Leviton%20GUAC%20Instruction%20Sheet%20Spanish.pdf
| Brand | Leviton |
| SKU | GUAC2-W |
| UPC | 07847799611 |
| Type | USB Receptacles |
| Title | Default Title |
