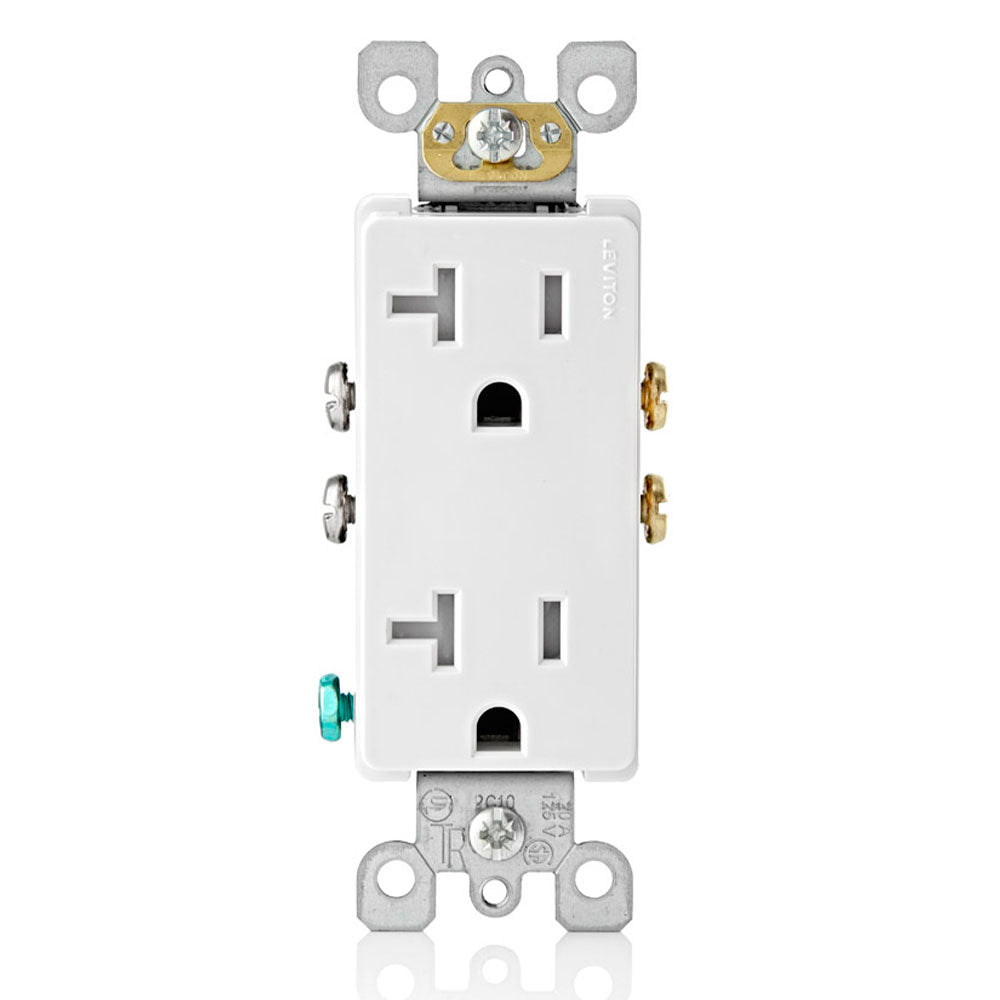

Leviton T5825-W Ultrasonically welded, 20A Tamper-Resistant, Decora duplex receptacle/outlet. Residential grade, NEMA
Leviton

Leviton T5825-W Ultrasonically welded, 20A Tamper-Resistant, Decora duplex receptacle/outlet. Residential grade, NEMA

LevitonModel / SKU: T5825-W · UPC 07847745035
Tamper-Resistant Receptacles
$6.61
$6.61 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

White - Ultrasonically welded, 20A Tamper-Resistant, Decora duplex receptacle/outlet. Residential grade, NEMA 5-20R, side wired only, UL, CSA and NOM

Part Number T5825-W
UPC 07847745035
Nema 5-20R
Amperage 20 A
Color White
Feature Tamper-Resistant
NEMA 5-20R
Product Type Decora
Ratings 20A-125V
Terminal Accom. Side wiring accepts #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
Termination Side
Torque Range 14 – 18 in.-lbs
Type Duplex Receptacle
Warranty 2-Year Limited
CSA C22.2 No. 42 File 152105; Class 6233-01
NOM NOM Certified
UL 498 File E13399
