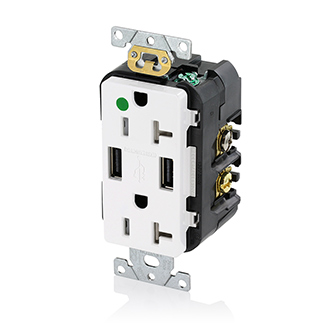

Home › Leviton T5832-HGW 20 A 125 VAC Heavy-Duty Hospital Grade Tamper Resistant 18W Type A USB Receptacle Outlet White
Leviton T5832-HGW 20 A 125 VAC Heavy-Duty Hospital Grade Tamper Resistant 18W Type A USB Receptacle Outlet White
Model / SKU: T5832-HGW · UPC 07847768552$47.79
$47.79 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
| Part Number | T5832-HGW |
| UPC | 07847768552 |
| Nema | 5-20R |
| At Rated Voltage | 1 HP |
| Amperage | 20 A |
| Dielectric Voltage | Withstands 2000V per CSA |
| Grounding | Self-Grounding |
| Pole | 2 |
| Temperature Rise | Max 30C after 100 cycles OL |
| Voltage | 125 VAC |
| Wire | 3 |
| Flammability | Rated V-0 per UL 94 |
| Operating Temperature | -10°C to 40°C |
| Body Material | PBT Thermoplastic polyester resin |
| Face Material | PBT |
| Ground Clips | Brass |
| Grounding Screw | Steel |
| Line Contacts | Brass |
| Strap Material | Steel |
| Terminal Clamp | Brass |
Q-873A%20Hospital%20Grade%20USB%20Receptacles.pdf
Straight%20Blade%20Receptacle%20Catalog%20Q-1101H.pdf
USB%20Receptacle%20Line%20Card%20Q-1470.pdf
- Certifications & Listings: CSA
| Brand | Leviton |
| SKU | T5832-HGW |
| UPC | 07847768552 |
| Type | USB Receptacles |
| Title | Default Title |
Free ground shipping on orders over $999. Orders ship direct from the manufacturer or distributor warehouse, typically within 2–5 business days, then 2–7 business days in transit. Contiguous U.S. only. Freight orders are quoted before you are charged. See our shipping policy and 30-day return policy.
