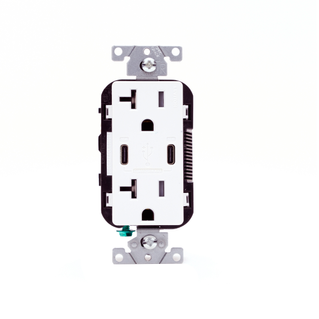

Leviton T5837-W White – 20 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-20R, 30W (6 Amps), Dual Type-C/C USB
Model / SKU: T5837-W · UPC 07847700095$32.18
$32.18 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
White – 20 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-20R, 30W (6 Amps), Dual Type-C/C USB Chargers, Grounding, Side Wired & Back Wired
| Part Number | T5837-W |
| UPC | 07847700095 |
| Nema | 5-20R |
| Amperage | 20 A |
| Body Material | Thermoplastic |
| Color | White |
| Cover Material | Thermoplastic |
| Grounding | Grounding |
| Horsepower Rating | 20A-1/2 HP |
| Ratings | 20A-125V |
| Strap Material | Steel |
| Voltage | 125 VAC |
| Flammability | Rated V-0 per UL 94 |
| Operating Temperature | -10°C to 40°C |
| Product ID | Stamped on Strap |
| Terminal Accom. | 14-12 AWG |
| Terminal ID | Brass-Hot Black-Hot White-Neutral Green-Gnd |
| Termination | Back & Side |
| Torque Range | 14 – 18 in.-lbs |
| Grade | Residential/Commercial Specification Grade |
T5637-T5837-one-side-instruction-sheet-en-fr-sp-leviton.pdf
T5637-T5837-opposite-sides-instruction-sheet-en-fr-sp-leviton.pdf
30W-Dual-Type-C-USB-In-Wall-Charger-Receptacle-PB-RESI-JS051623-EN-leviton.pdf
product-bulletin-non-pd-usb-t5637-js-051623-resi-frc-leviton.pdf
| Brand | Leviton |
| SKU | T5837-W |
| UPC | 07847700095 |
| Type | USB Receptacles |
| Title | Default Title |
