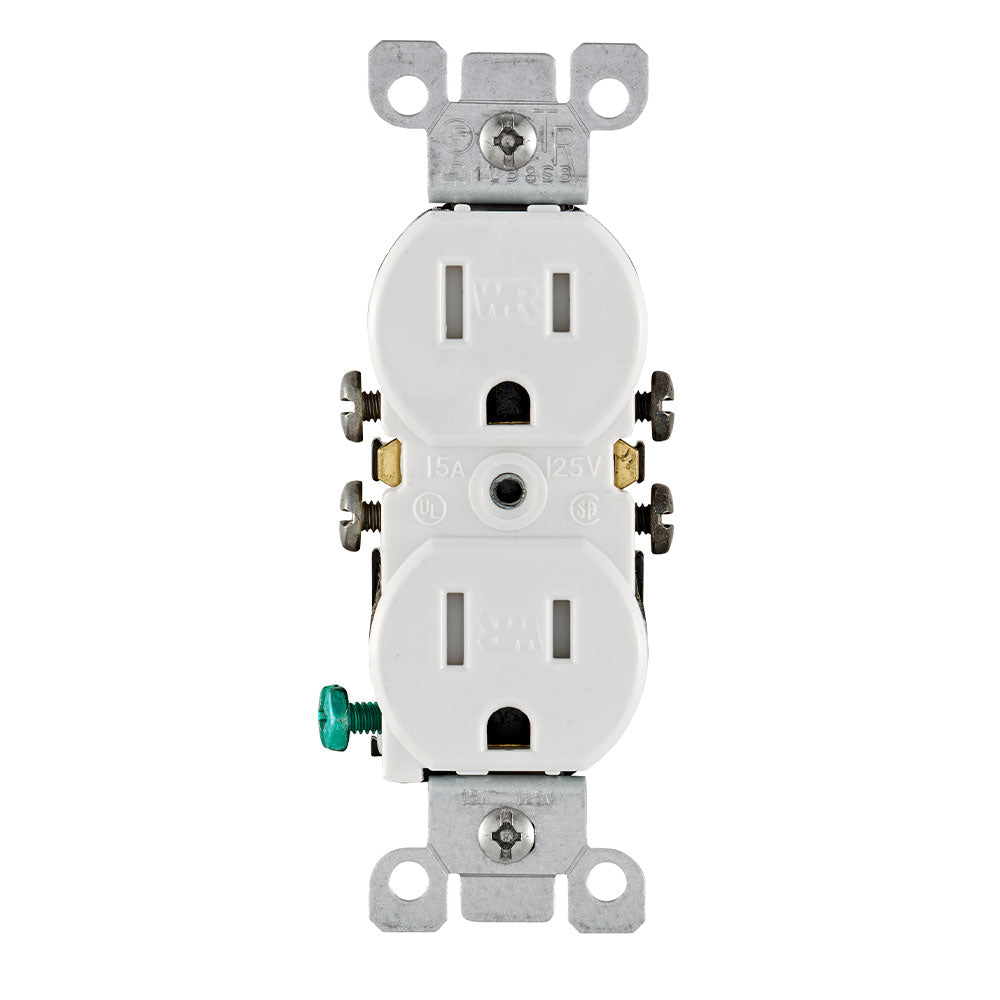

Leviton W5320-T0W White – Weather and Tamper-Resistant, 15 Amp, 125 Volt, 5-15R, 2 Pole, 3 Wire, Straight Blade, Duplex
Leviton

Leviton W5320-T0W White – Weather and Tamper-Resistant, 15 Amp, 125 Volt, 5-15R, 2 Pole, 3 Wire, Straight Blade, Duplex

LevitonModel / SKU: W5320-T0W · UPC 07847743358
Tamper-Resistant Receptacles
$2.80
$2.80 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

White – Weather and Tamper-Resistant, 15 Amp, 125 Volt, 5-15R, 2 Pole, 3 Wire, Straight Blade, Duplex Receptacle, Grounding, Quickwire Push-In & Side, UL/CSA, 2 Year Limited Warranty, NEC compliant

Part Number W5320-T0W
UPC 07847743358
Nema 5-15R
Amperage 15 A
Grounding Grounding
Pole 2
Wire 3
Termination Quickwire Push-In & Side
Torque Range 14 – 18 in.-lbs
Color White
Device Type Duplex Receptacle
Feature Weather and Tamper-Resistant
Type Standard Duplex Receptacle
Weather Resistant Yes
Terminal Accom. Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
CSA C22.2 No. 42: File 152105; Class 6233-01
NEMA WD-6
NOM NOM Certified
UL 498 File E13399
Warranty 2-Year Limited

15a-receptacle-instruction-sheet.pdf

w5320-dimensional-drawing-RS-en-leviton.pdf

Product page on leviton.com
