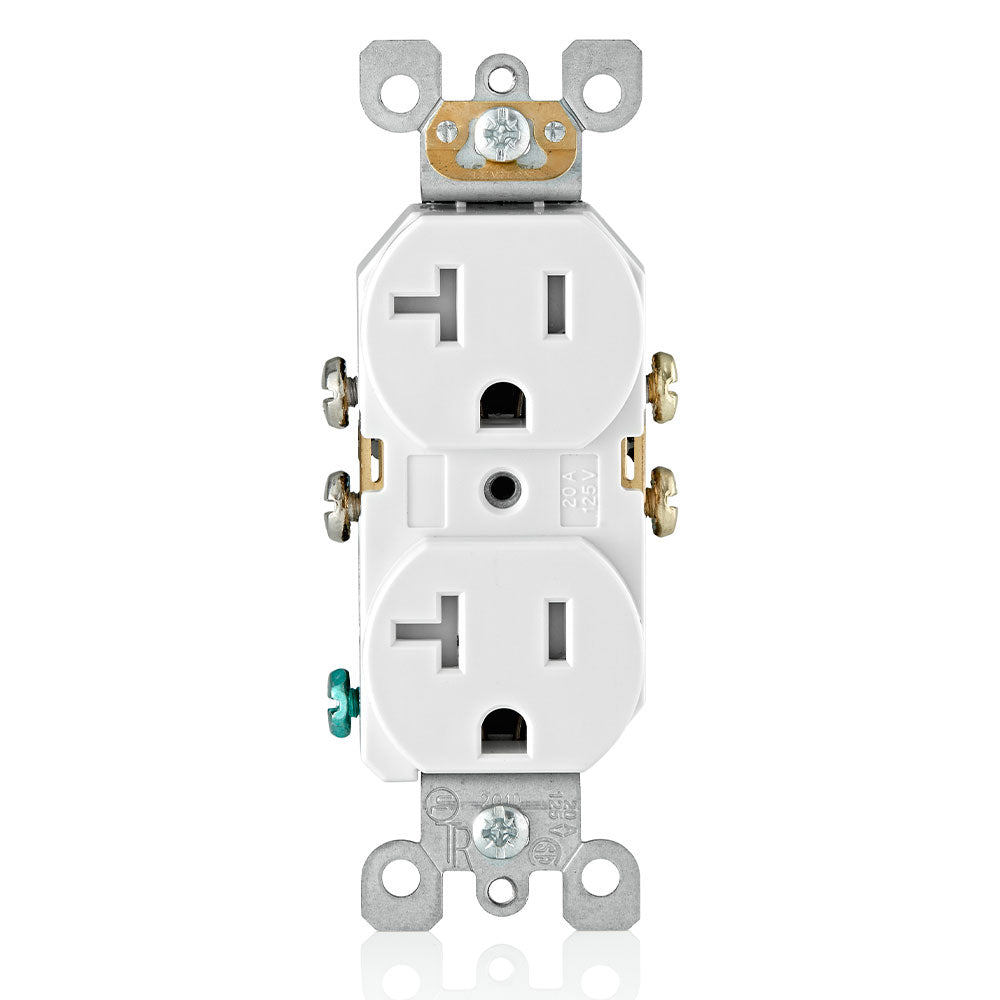

Leviton T5820-W 20 Amp, 125 Volt, NEMA: 5-20R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle/Outlet, Straight
Leviton

Leviton T5820-W 20 Amp, 125 Volt, NEMA: 5-20R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle/Outlet, Straight

LevitonModel / SKU: T5820-W · UPC 07847745021
Tamper-Resistant Receptacles
$5.41
$5.41 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

White - 20 Amp, 125 Volt, NEMA: 5-20R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle/Outlet, Straight Blade, Self Grounding, Side Wired Only, NEC compliant

Part Number T5820-W
UPC 07847745021
Nema 5-20R
Amperage 20 A
Body Material Thermoplastic Nylon
Color White
Device Type Duplex Receptacle
Face Material Thermoplastic Nylon
Feature Tamper-Resistant
Grounding Self-Grounding
NEMA 5-20R
Pole 2
Product Type Standard
Terminal Accom. Side wiring accepts #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
Termination Side
Torque Range 14 – 18 in.-lbs
Type Duplex Receptacle
Voltage 125 VAC
Wire 3
CSA C22.2 No. 42 File 152105; Class 6233-01

Leviton%20T5820%20Instruction%20Sheet%20EnFrSp.pdf

Tamper%20Resistant%20Receptacles%20Product%20Bulletin.pdf

Product page on leviton.com
