Home › Leviton TCR15-W 15 A 125 VAC Tamper-Resistant Receptacle White

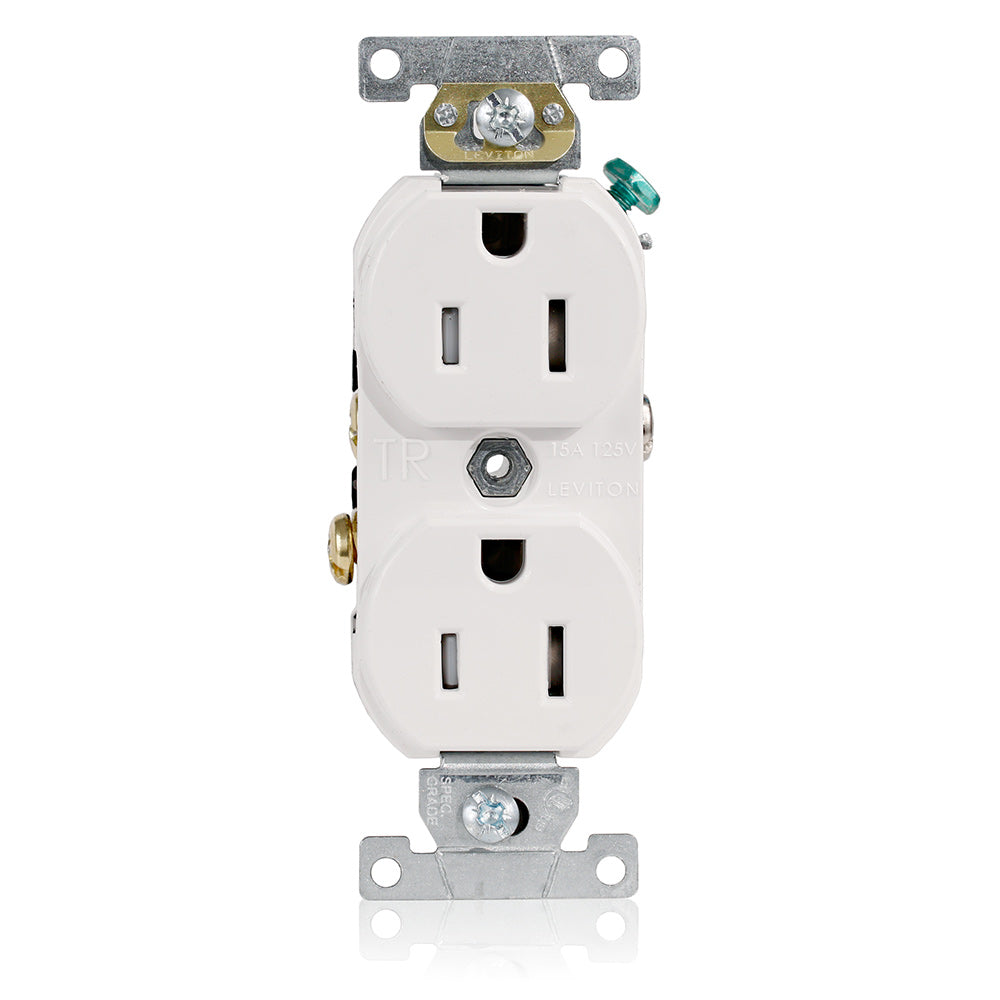

Leviton TCR15-W 15 A 125 VAC Tamper-Resistant Receptacle White
Model / SKU: TCR15-W · UPC 07847765538$5.01
$5.01 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ Easy returns
| Part Number | TCR15-W |
| UPC | 07847765538 |
| RoHS Compliant | Yes |
| Horsepower Rating | 1/2 HP |
| Amperage | 15 A |
| Current Limiting | Full Rated Current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Self-Grounding |
| Pole | 2 |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Flammability | Rated V-2 per UL94 |
| Operating Temperature | -40°C to 60°C |
| Body Material | Thermoplastic |
| Face Material | Thermoplastic |
| Ground Clips | Brass |
| Grounding Screw | Plated Steel |
| Line Contacts | Brass .031 Thick |
| Shutter Mechanism | Delrin® Acetal |
| Brand | Leviton |
| SKU | TCR15-W |
| UPC | 07847765538 |
| Type | Tamper-Resistant Receptacles |
| Title | Default Title |
