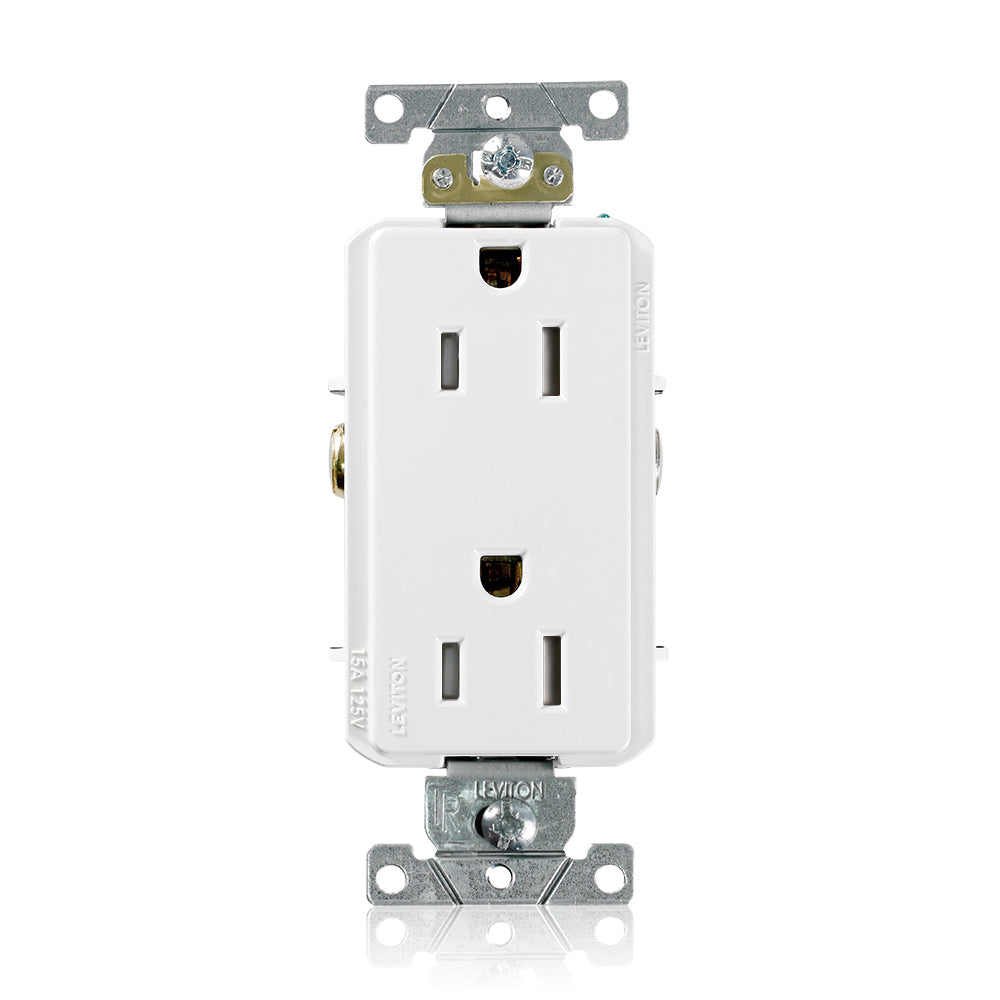

Leviton TDR15-W 15 A 125 VAC Tamper-Resistant Receptacle White
Model / SKU: TDR15-W · UPC 07847738182$17.42
$17.42 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
| Part Number | TDR15-W |
| UPC | 07847738182 |
| Amperage | 15 A |
| Dielectric Voltage | Withstands 3000 V minimum |
| Grounding | Self-Grounding |
| Horsepower Rating | 1/2 HP |
| Pole | 2 |
| Temperature Rise | Max 30 °C temperature rise at full rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Flammability | Rated V-0 per UL 94 |
| Operating Temperature | -40°C to 75°C |
| Body Material | PBT Polyester Blend |
| Color | White |
| Face Material | PBT Polyester Blend |
| Ground Clips | Brass |
| Ground Contacts | 0.030" Brass |
| Grounding Screw | #8 Hex Head, Triple-Drive Brass |
| Line Contacts | Phosphor Bronze Triple Wipe 0.031 |
| Mounting Screws | Triple-Drive Plated Steel |
| Brand | Leviton |
| SKU | TDR15-W |
| UPC | 07847738182 |
| Type | Tamper-Resistant Receptacles |
| Title | Default Title |
