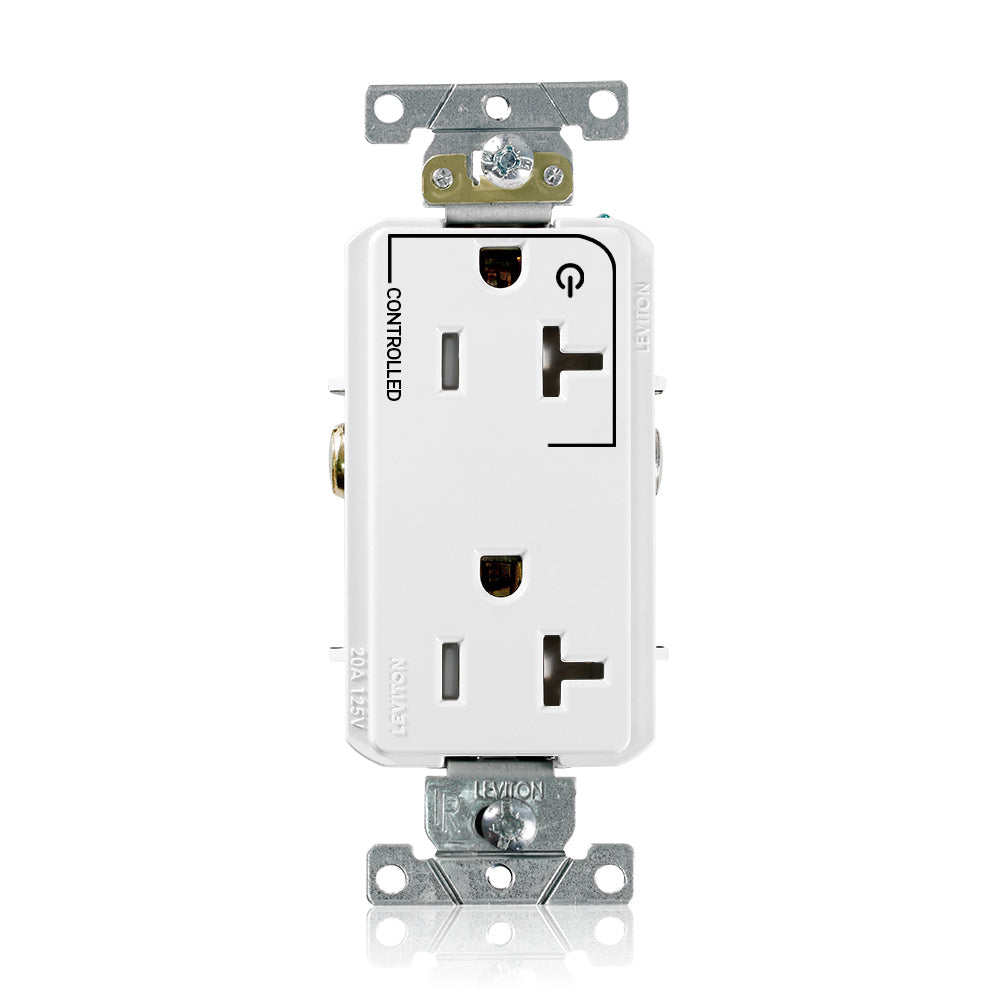

Leviton TDR20-S1W 20 A 125 VAC Tamper-Resistant Receptacle White
Model / SKU: TDR20-S1W · UPC 07847776245$22.09
$22.09 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ Easy returns
| Part Number | TDR20-S1W |
| UPC | 07847776245 |
| Nema | 5-20R |
| At Rated Voltage | 1/2 HP |
| Amperage | 20 A |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Self-Grounding |
| Pole | 2 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Operating Temperature | -40°C to 60°C |
| Body Material | Nylon |
| Face Material | Polypropylene |
| Ground Clips | Brass |
| Grounding Screw | Plated Steel |
| Line Contacts | Phosphor Bronze Triple Wipe 0.031 |
| Strap Material | Zinc-Plated Steel 0.042 |
| Terminal Clamp | Plated Steel |
| Terminal Screws | Plated Steel |
| Brand | Leviton |
| SKU | TDR20-S1W |
| UPC | 07847776245 |
| Type | Tamper-Resistant Receptacles |
