Home › Leviton TDR20-W 20 A 125 VAC Tamper-Resistant Receptacle White

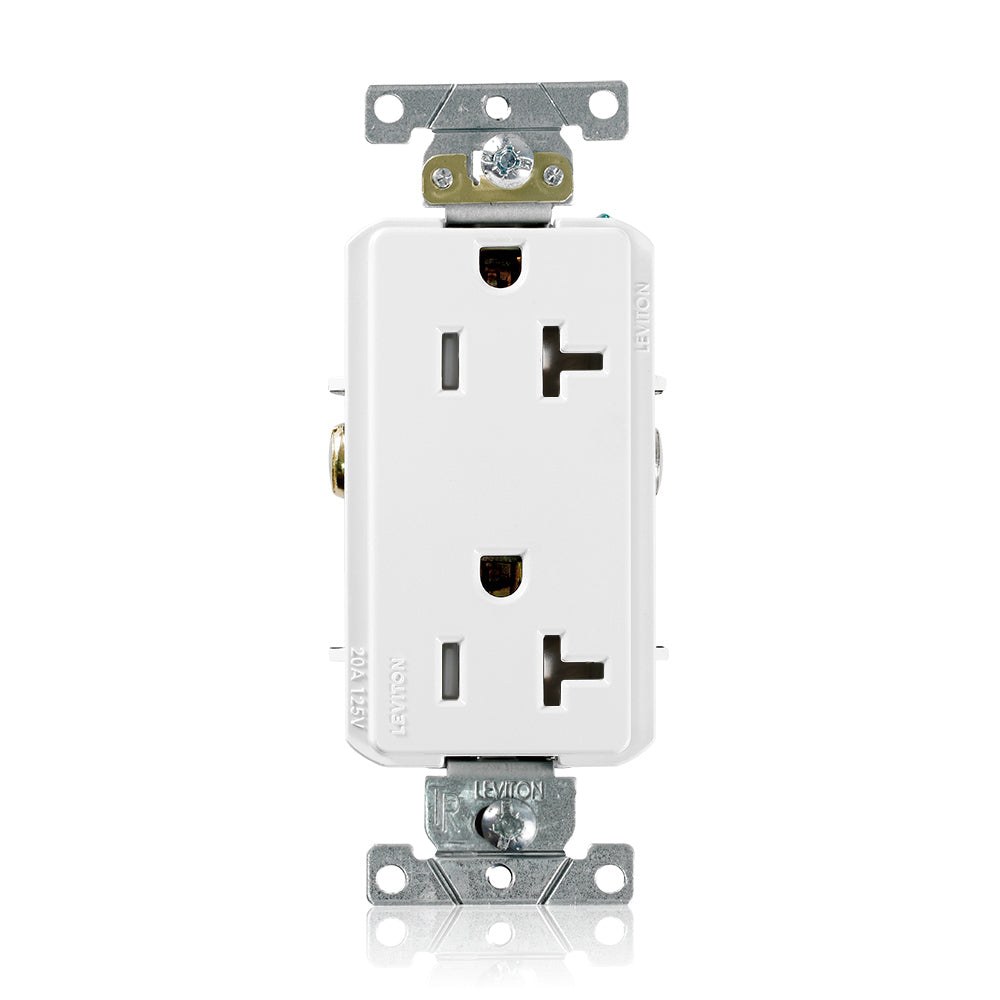

Leviton TDR20-W 20 A 125 VAC Tamper-Resistant Receptacle White
Model / SKU: TDR20-W · UPC 07847738183$18.03
$18.03 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ Easy returns
| Part Number | TDR20-W |
| UPC | 07847738183 |
| Amperage | 20 A |
| Dielectric Voltage | Withstands 3000 V minimum |
| Grounding | Self-Grounding |
| Horsepower Rating | 1 HP |
| Pole | 2 |
| Temperature Rise | Max 30 °C temperature rise at full rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Flammability | Rated HB or better UL94 |
| Operating Temperature | -40°C to 60°C |
| Body Material | PBT Polyester Blend |
| Color | White |
| Face Material | PBT Polyester Blend |
| Ground Clips | Brass |
| Ground Contacts | 0.030" Brass |
| Grounding Screw | #8 Hex Head, Triple-Drive Brass |
| Line Contacts | Phosphor Bronze Triple Wipe 0.031 |
| Mounting Screws | Triple-Drive Plated Steel |
| Brand | Leviton |
| SKU | TDR20-W |
| UPC | 07847738183 |
| Type | Tamper-Resistant Receptacles |
| Title | Default Title |
