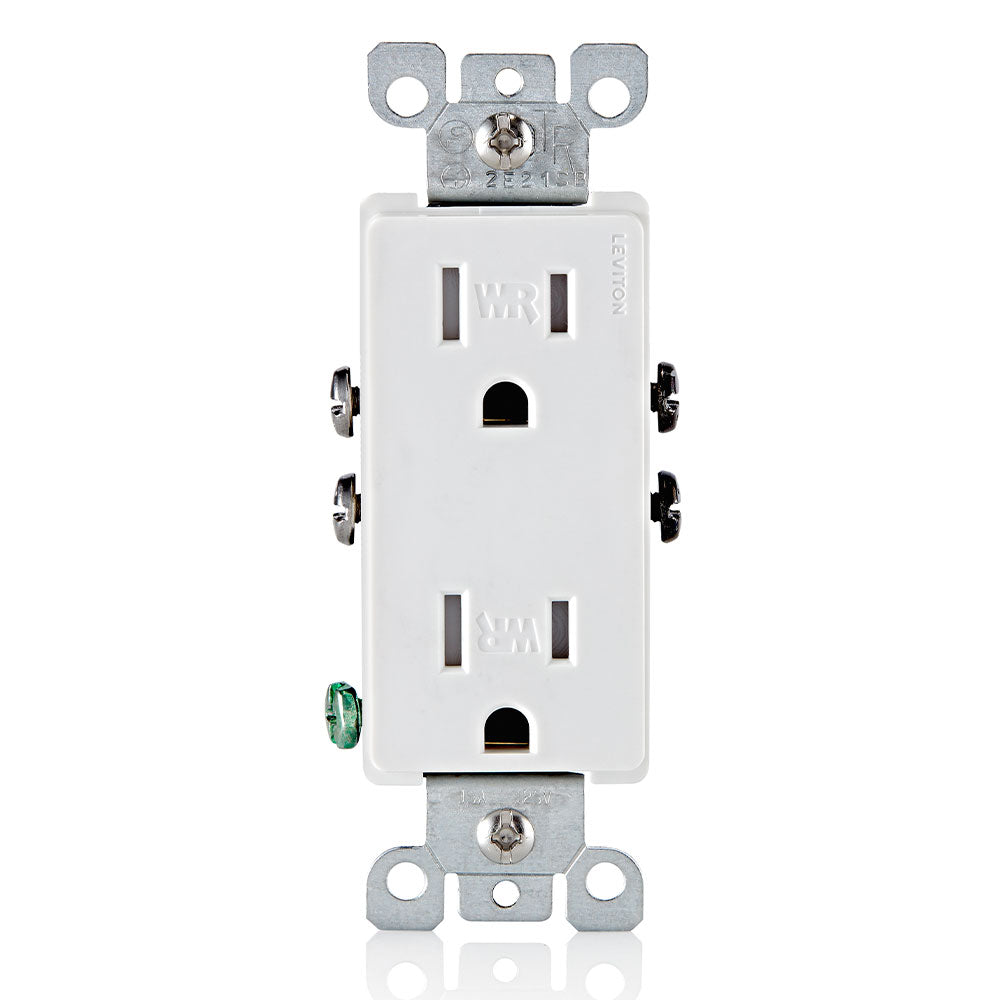

Home › Leviton W5325-T0W White – 15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Weather and Tamper-Resistant, Decora, Duplex
Leviton W5325-T0W White – 15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Weather and Tamper-Resistant, Decora, Duplex
Leviton

Leviton W5325-T0W White – 15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Weather and Tamper-Resistant, Decora, Duplex

LevitonModel / SKU: W5325-T0W · UPC 07847793778
Tamper-Resistant Receptacles
$5.98
$5.98 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

White – 15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Weather and Tamper-Resistant, Decora, Duplex Receptacle/Outlet, Straight Blade, Grounding, Quickwire Push-In & Side, Standards and Certifications: UL/CSA, Warranty: 2 Year Limited, NEC compliant

Part Number W5325-T0W
UPC 07847793778
Nema 5-15R
Amperage 15 A
Grounding Grounding
Pole 2
Wire 3
Termination Quickwire Push-In & Side
Torque Range 14 - 18 in.-lbs
Color White
Device Type Decora Receptacle
Feature Weather and Tamper-Resistant
Type Decora Duplex Receptacle
Weather Resistant Yes
Terminal Accom. Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
CSA C22.2 No. 42: File 152105; Class 6233-01
NEMA WD-6
NOM NOM Certified
UL 498 File E13399
Warranty 2-Year Limited

15a-receptacle-instruction-sheet.pdf

Leviton%20W5325%20Dimension%20Data.pdf

Product page on leviton.com
