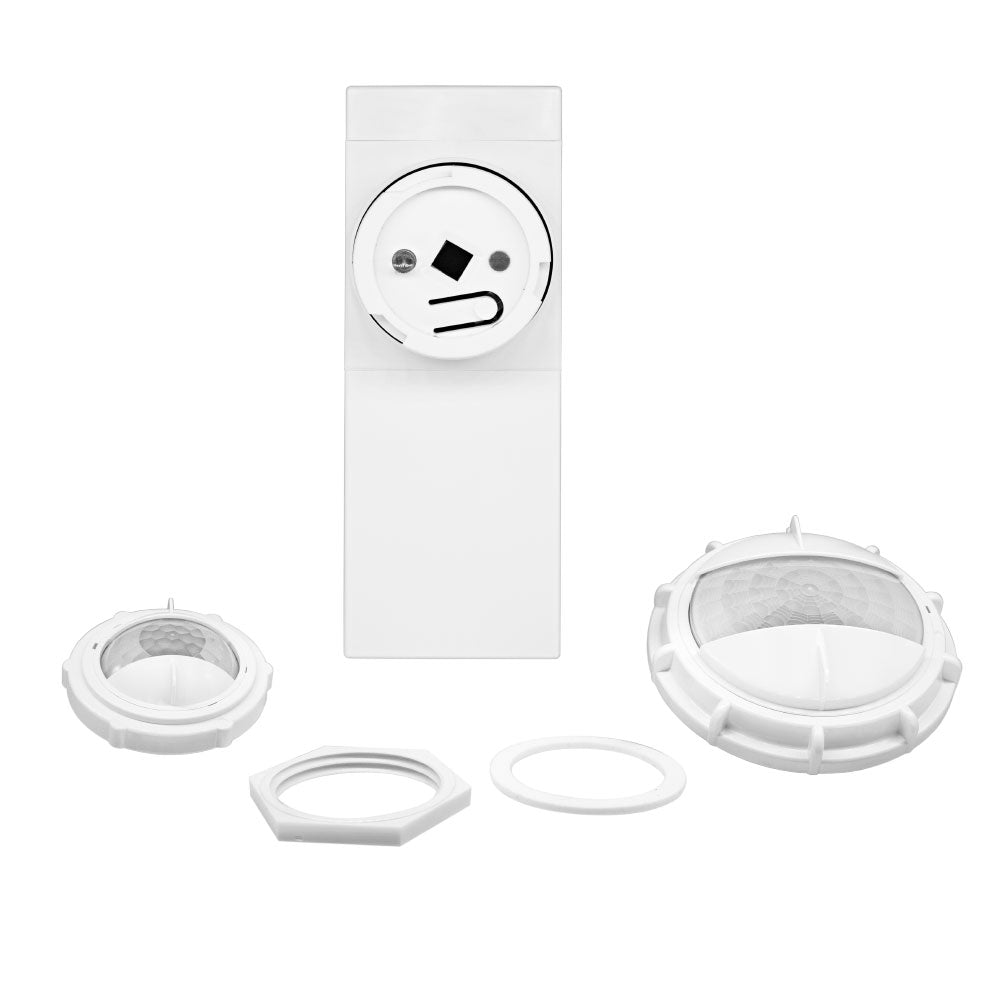

Leviton ZLD1Z-I0W Dimming Daylight Harvesting PIR Occupancy Sensor; Internal Fixture Mount; 120-277VAC 50/60 Hz; IP65 Rating
Model / SKU: ZLD1Z-I0W · UPC 07847721412- 🚚 Free shipping on orders $999+
- ↩ 30-day returns (see policy)
Dimming Daylight Harvesting PIR Occupancy Sensor; Internal Fixture Mount; 120-277VAC 50/60 Hz; IP65 Rating for High and Low-Temp, Watertight, Indoor/Outdoor; Single Zone 0-10V Dimming, 120-277VAC single-pole 5A relay; 8-20’ Lens and 20-40’ lens included, bulk pack, 25/case
| Part Number | ZLD1Z-I0W |
| UPC | 07847721412 |
| Dimming Technology | 0-10VDC |
| Frequency | 50/60Hz |
| Load Rating | See Product Specification/Data Sheet |
| Voltage | 120-277 VAC |
| Environment | Indoor/Outdoor |
| Operating Temperature | -40°C to 75°C |
| Relative Humidity | 0% to 90% non-condensing |
| Storage Temperature Range | -40° to 185°F (-40° to 85°C) |
| Color | White |
| Grade | Commercial |
| IP Rating | IP66 (Type 3R) |
| Mounting Type | Light Fixture Integrated |
| Sensor Mounting Configuration | Internal |
| Size | Width: 1.39” (35.3 mm) Length: 3.75” (95.3 mm) Depth: 0.91” (23 mm) |
| Pattern | 360° |
| Application | Warehouses,Loading bays,Outdoor Lighting,Parking garages,Gymnasiums,Libraries,High-bay,Wet Location |
| Commissioning | App Enabled |
| Mounting | Integrated into Light Fixture |
Smart-Sensor-IP66-PIR-Integrated-Fixture-Mount-Sensors-OFDxZ-ZLDxZ-English-Data-Sheet.pdf
Integrated-Smart-Sensor-Photocell-Occupancy-Sensor-English-Instruction-Sheet.pdf
Integrated-Smart-Sensor-Photocell-Occupancy-Sensor-Spanish-Instruction-Sheet.pdf
Integrated-Smart-Sensor-Photocell-Occupancy-Sensor-French-Instruction-Sheet.pdf
| Brand | Leviton |
| SKU | ZLD1Z-I0W |
| UPC | 07847721412 |
| Type | Occupancy Sensors |
| Title | Default Title |
