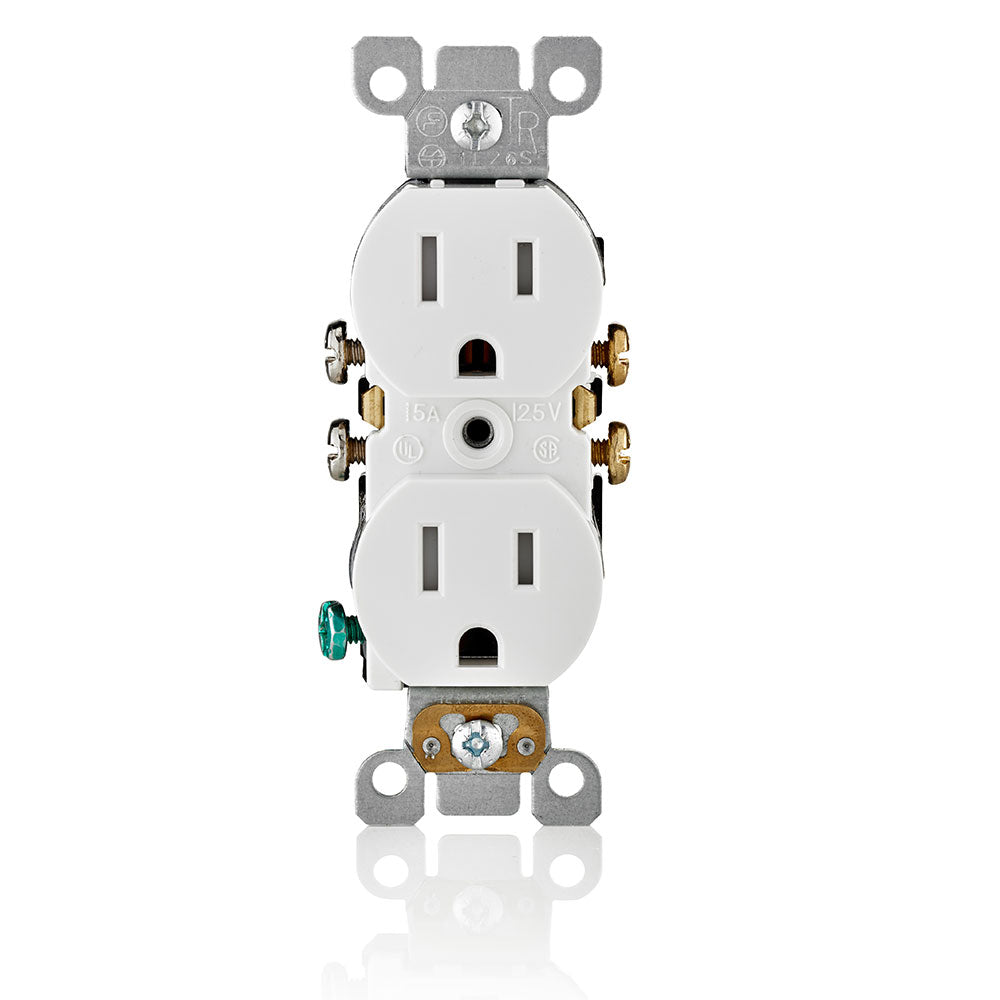

Leviton T5320-SW 15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle, Straight Blade
Leviton

Leviton T5320-SW 15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle, Straight Blade

LevitonModel / SKU: T5320-SW · UPC 07847742936
Tamper-Resistant Receptacles
$2.00
$2.00 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

White - 15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle, Straight Blade, Self-Grounding, Quickwire Push-In & Side, UL/CSA, Warranty: 2 Year Limited, NEC compliant

Part Number T5320-SW
UPC 07847742936
Nema 5-15R
Amperage 15 A
Base Material Thermoplastic
Blade Type Straight Blade
Color White
Device Type Duplex Receptacle
Face Material Thermoplastic
Feature Tamper-Resistant
Grounding Self-Grounding
NEMA 5-15R
Pole 2
Termination Quickwire Push-In & Side
Torque Range 14 – 18 in.-lbs
Type Duplex Receptacle
Voltage 125 VAC
Warranty 2-Year Limited
Wire 3
CSA C22.2 No. 42 File 152105; Class 6233-01

Leviton%20T5320%20Instruction%20Sheet%20EnFrSp.pdf

Tamper%20Resistant%20Receptacles%20Product%20Bulletin.pdf

Product page on leviton.com
