Home › Leviton TWR15-W 15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Duplex Receptacle, Tamper & Weather-Resistant, Straight Blade

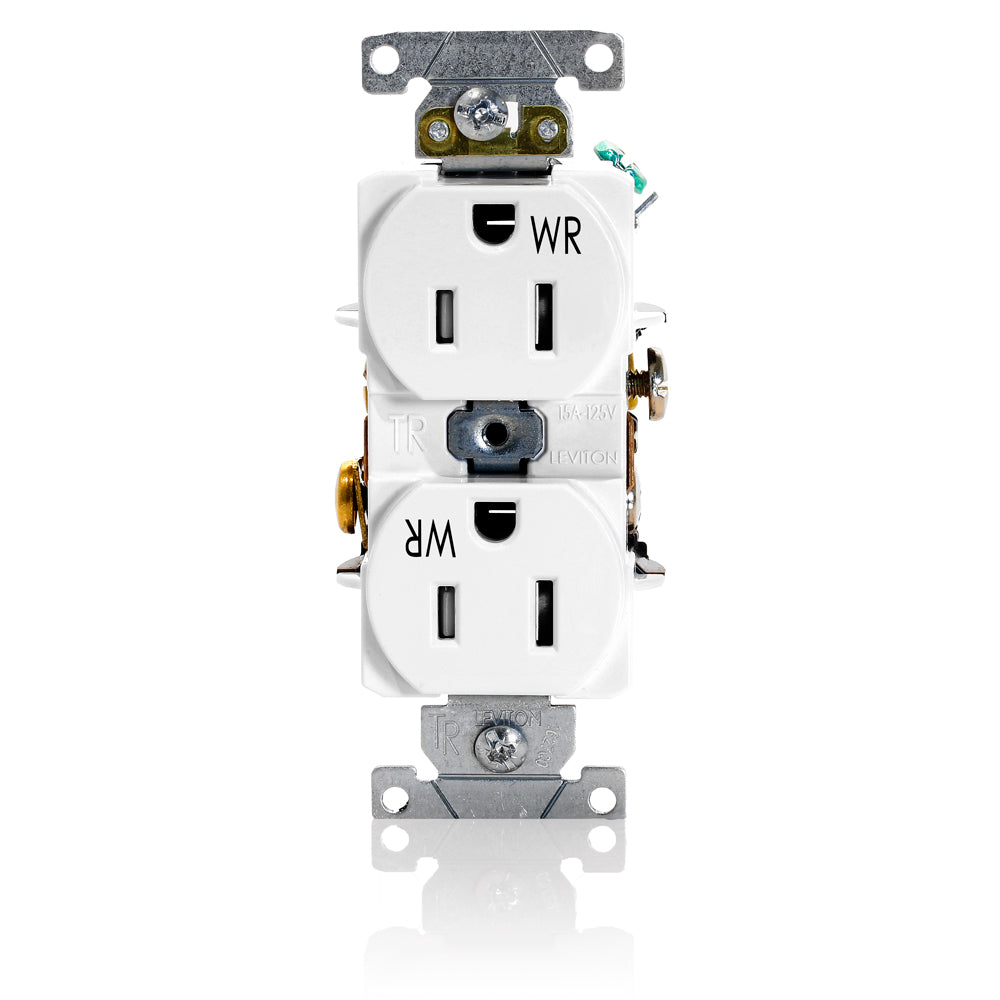

Leviton TWR15-W 15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Duplex Receptacle, Tamper & Weather-Resistant, Straight Blade
Model / SKU: TWR15-W · UPC 07847738184$10.14
$10.14 each
Spec Sheet & Documents
Download Spec Sheet (PDF)- 🚚 Free shipping on orders $999+
- ↩ Easy returns
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Duplex Receptacle, Tamper & Weather-Resistant, Straight Blade, Industrial Grade, Self Grounding, Back & Side Wired, Nickel Plated Brass Strap – WHITE
| Part Number | TWR15-W |
| UPC | 07847738184 |
| Nema | 5-15R |
| Amperage | 15 A |
| Dielectric Voltage | Withstands 3000 V minimum |
| Grounding | Self-Grounding |
| Horsepower Rating | 1/2 HP |
| Pole | 2 |
| Temperature Rise | Max 30 °C after 250 cycles OL at 200 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
| Flammability | Rated V-0 per UL 94 |
| Operating Temperature | -40°C to 75°C |
| Body Material | PBT Polyester Blend |
| Color | Ivory |
| Face Material | PBT Polyester Blend |
| Ground Clips | Brass |
| Ground Contacts | 0.030" Brass |
| Grounding Screw | #8 hex head, triple drive Brass |
| Line Contacts | 0.030" Phosphor Bronze |
Weather-Resistant%20Duplex%20Receptacles%20Product%20Bulletin%20Q-1082.pdf
| Brand | Leviton |
| SKU | TWR15-W |
| UPC | 07847738184 |
| Type | Tamper-Resistant Receptacles |
| Title | Default Title |
Free ground shipping on orders over $999. Most in-stock items ship within 1–2 business days. Large or freight orders: contact us for a quote.
