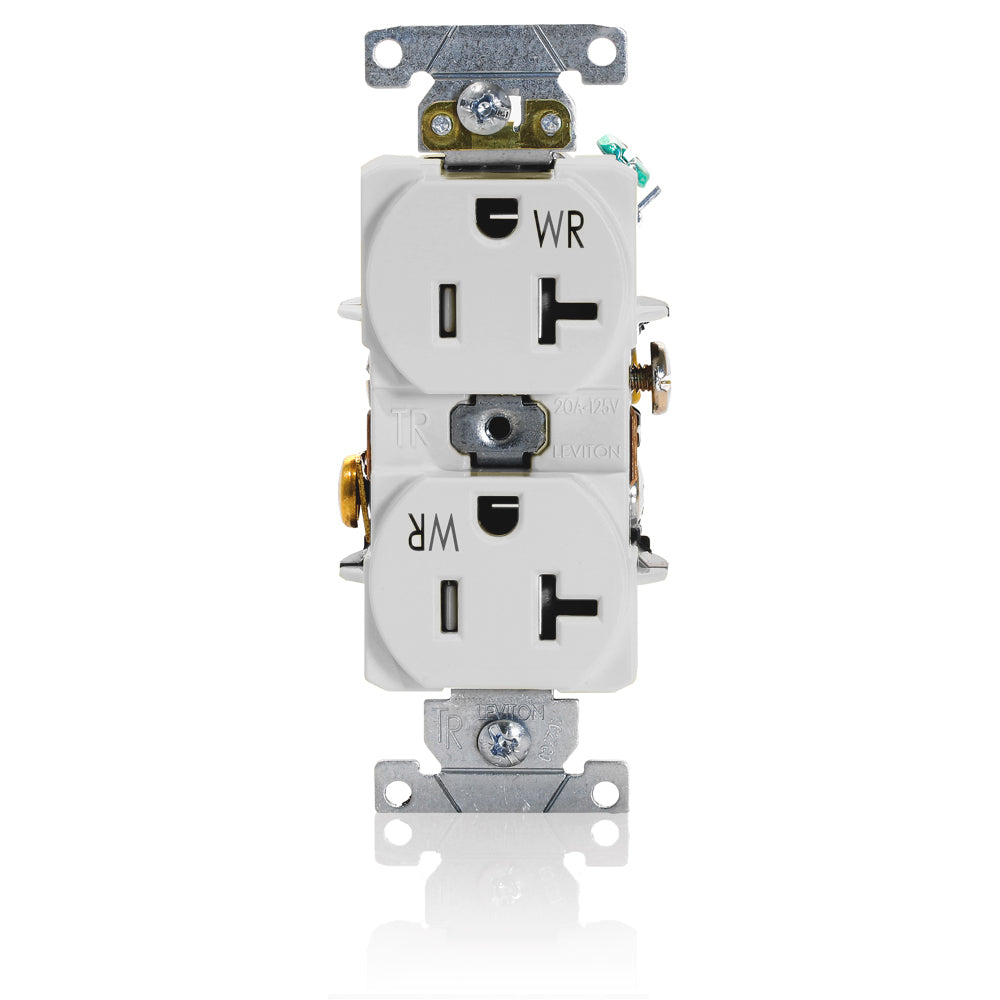

Leviton TWR20-W 20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Duplex Receptacle, Tamper & Weather-Resistant, Straight Blade
Leviton

Leviton TWR20-W 20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Duplex Receptacle, Tamper & Weather-Resistant, Straight Blade

LevitonModel / SKU: TWR20-W · UPC 07847738185
Tamper-Resistant Receptacles
$15.40
$15.40 each
Get a quote
Spec Sheet & Documents
Download Spec Sheet (PDF)

20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Duplex Receptacle, Tamper & Weather-Resistant, Straight Blade, Industrial Grade, Self Grounding, Back & Side Wired, Nickel Plated Brass Strap – WHITE

Part Number TWR20-W
UPC 07847738185
Nema 5-20R
At Rated Voltage 1 HP
Current Limiting Full Rated Current
Dielectric Voltage Withstands 2000V per UL498
Grounding Self-Grounding
Temperature Rise Max 30C after 100 cycles OL at 150 percent rated current
Body Material Nylon
Clamp Nuts Zinc-Plated Steel
Color White
Face Material Nylon
Ground Clips Nickel-Plated
Grounding Screw Nickel-Plated Brass
Line Contacts Nickel-Plated Brass Triple-Wipe .040 Thick
Mounting Screws Stainless Steel
Shutter Mechanism Delrin® Acetal
Strap Material Nickel Plated Brass
Terminal Screws Nickel-Plated Brass 10-32
Product ID Ratings permanently marked on device
